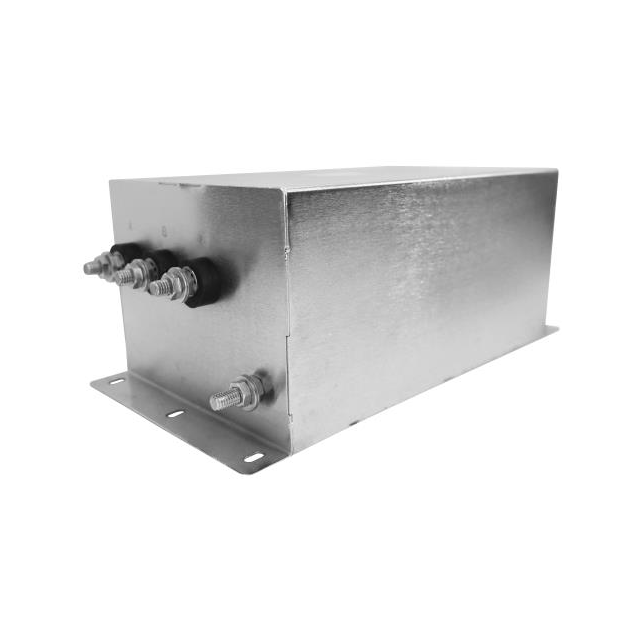

3BH30D

Active

Astrodyne TDI

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Search across all available documentation for this part.

Active

Astrodyne TDI

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Termination Style	Configuration	Approval Agency	Current	Voltage - Rated AC	Applications
Astrodyne TDI 3BH30D	Chassis Mount	60 Hz	50 Hz	Three Phase (Delta)	Threaded Post (10-32)	Single Stage	CE CSA cURus SEMKO	30 A	480 V	General Purpose
Astrodyne TDI 3BH30D LF	Chassis Mount	60 Hz	50 Hz	Three Phase (Delta)	Threaded Post (10-32)	Single Stage	CE CSA cURus SEMKO	30 A	480 V	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 30 A 480V 50/60Hz Single Stage Threaded Post (10-32)
