680M5W1103L401

Active

MH Connectors

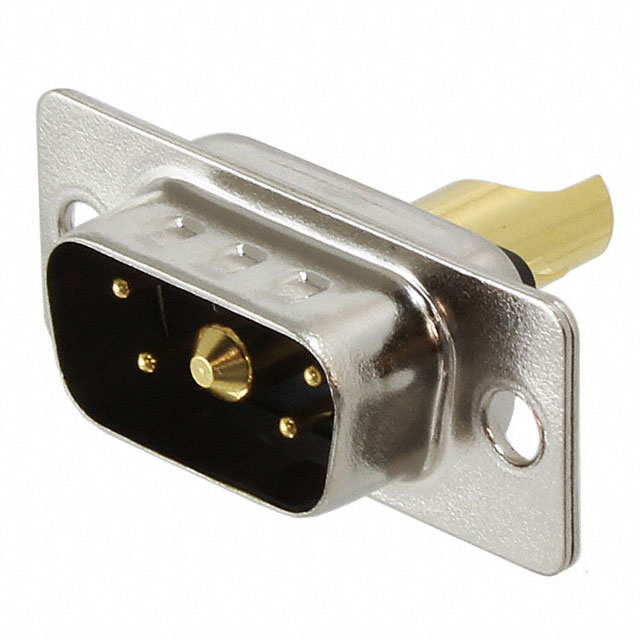

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	680M5W1103L401

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E) - 5W1

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness	Connector Style	Color	Dielectric Material	Contact Material	Current Rating (Amps)	Contact Type	Shell Size, Connector Layout	Features	Shell Material, Finish	Number of Rows	Flange Feature	Material Flammability Rating	Contact Finish
MH Connectors 680M5W1103L401	5	-55 °C	125 °C	Male Pins Plug	Flash	Combo D-Sub	Black	Polybutylene Terephthalate (PBT)	Copper Alloy	5 A 40 A	Signal and Power	1 (DE E) - 5W1	Grounding Indents	Nickel Plated Steel	2	Housing/Shell (Unthreaded)	UL94 V-0	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	110	$ 6.20
Newark	Each	100	$ 6.54
		250	$ 6.10

General part information

5 (4 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
