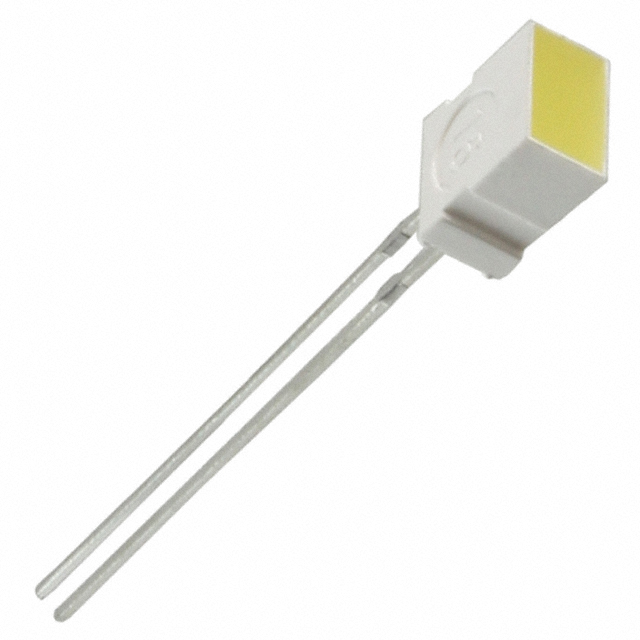

MV53124A
ActiveEverlight Electronics Co Ltd
LED YELLOW DIFFUSED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MV53124A
ActiveEverlight Electronics Co Ltd
LED YELLOW DIFFUSED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MV53124A |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7.11 mm |
| Lens Color | Yellow |
| Lens Size [x] | 5.71 mm |
| Lens Size [y] | 3.17 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 6 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [x] | 6.22 mm |
| Size / Dimension [y] | 3.68 mm |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 10 | $ 0.26 | |||
| 250 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
Description
General part information
MV53124 Series
Yellow LED Indication - Discrete 2V Radial
