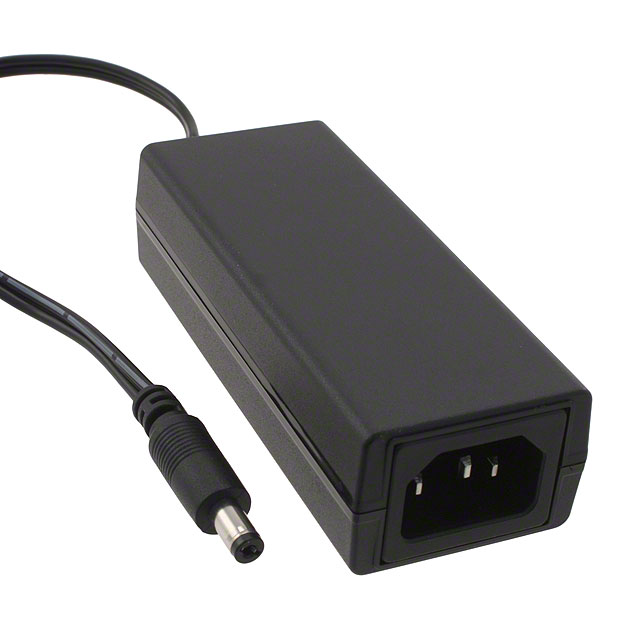

PSAC30U-480L6

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSAC30U-480L6

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSAC30U-480L6

Applications	ITE (Commercial)
Approval Agency	cULus, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	625 mA
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	103.4 mm
Size / Dimension [x]	4.07 in
Size / Dimension [y]	1.65 in
Size / Dimension [y]	42 mm
Size / Dimension [z]	28.7 mm
Size / Dimension [z]	1.13 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V
Weight	140 g
Weight	4.94 oz

PSAC30U Series

Desktop AC Adapters 30W 12V 2.5A C14 Level VI 2.1x5.5

Part	Current - Output (Max) [Max]	Voltage - Output	Polarization	Applications	Form	Power (Watts)	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Operating Temperature [Max]	Input Type	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Weight	Weight	Approval Agency	Output Connector [z]	Output Connector [diameter]	Output Connector
Phihong USA PSAC30U-480L6	625 mA	48 V	Positive Center	ITE (Commercial)	Desktop (Class I)	30 W	1.5 m	59 in	1.65 in	28.7 mm	42 mm	103.4 mm	1.13 in	4.07 in	Level VI	40 °C	Cord	IEC 320-C14	90 VAC	264 VAC	International	140 g	4.94 oz	CE cULus	10 mm	2.1 mm 5.5 mm	Barrel Plug
Phihong USA PSAC30U-090L6	3 A	9 V	Positive Center	ITE (Commercial)	Desktop (Class I)	27 W	1.5 m	59 in	1.65 in	28.7 mm	42 mm	103.4 mm	1.13 in	4.07 in	Level VI	40 °C	Cord	IEC 320-C14	90 VAC	264 VAC	International	140 g	4.94 oz	CE cULus	10 mm	2.1 mm 5.5 mm	Barrel Plug
Phihong USA PSAC30U-240L6	1.25 A	24 V	Positive Center	ITE (Commercial)	Desktop (Class I)	30 W	1.5 m	59 in	1.65 in	28.7 mm	42 mm	103.4 mm	1.13 in	4.07 in	Level VI	40 °C	Cord	IEC 320-C14	90 VAC	264 VAC	International	140 g	4.94 oz	CE cULus	10 mm	2.1 mm 5.5 mm	Barrel Plug
Phihong USA PSAC30U-560L6	540 mA	56 V	Positive Center	ITE (Commercial)	Desktop (Class I)	30 W	1.5 m	59 in	1.65 in	28.7 mm	42 mm	103.4 mm	1.13 in	4.07 in	Level VI	40 °C	Cord	IEC 320-C14	90 VAC	264 VAC	International	140 g	4.94 oz	CE cULus	10 mm	2.1 mm 5.5 mm	Barrel Plug
Phihong USA PSAC30U-120L6	2.5 A	12 V	Positive Center	ITE (Commercial)	Desktop (Class I)	30 W	1.5 m	59 in	1.65 in	28.7 mm	42 mm	103.4 mm	1.13 in	4.07 in	Level VI	40 °C	Cord	IEC 320-C14	90 VAC	264 VAC	International	140 g	4.94 oz	CE cULus	10 mm	2.1 mm 5.5 mm	Barrel Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PSAC30U Series

Desktop AC Adapters 30W 12V 2.5A C14 Level VI 2.1x5.5
