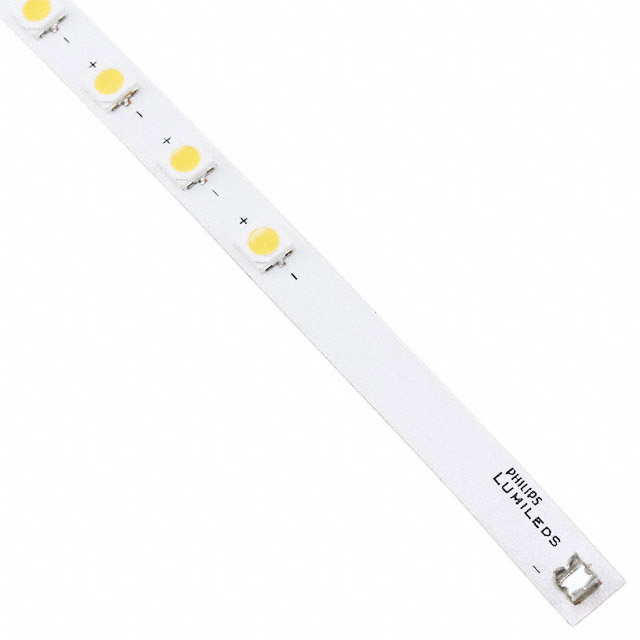

L235-3580AULM5JAI0

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 3500K

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	L235-3580AULM5JAI0

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Max [Max]	1.8 A
Current - Test	900 mA
Height [z]	1.23 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	143 lm/W
Luminous Flux @ Current/Temperature	4644 lm
Size / Dimension [x]	1150 mm
Size / Dimension [y]	5.25 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	36 V

Part	CRI (Color Rendering Index)	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Current - Max [Max]	Lens Type	Lumens/Watt @ Current - Test	Configuration	Current - Test	CCT (K)	Type	Luminous Flux @ Current/Temperature	Color
Lumileds L235-3580AHLGBBAC0	80	1.23 mm	18 V	600 mm	10 mm	100.00mm L per Segment	1.2 A	Flat	143 lm/W	Flexible Linear Light Strip	600 mA	3500 K	LED Module	1548 lm	Warm White
Lumileds L235-3580AULM5JAI0	80	1.23 mm	36 V	1150 mm	5.25 mm		1.8 A	Flat	143 lm/W	Flexible Linear Light Strip	900 mA	3500 K	LED Module	4644 lm	Warm White
Lumileds L235-3580AHLCBBAC0	80	1.23 mm	18 V	300 mm	10 mm	100.00mm L per Segment	1.2 A	Flat	143 lm/W	Flexible Linear Light Strip	600 mA	3500 K	LED Module	1548 lm	Warm White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module LUXEON XF-3535L White, Warm Linear Light Strip, Flexible
