SE120,OR

Active

Serpac

CASE PLAS ORG 8.700"L X 7.450"W

Deep-Dive with AI

Search across all available documentation for this part.

SE120,OR

Active

Serpac

CASE PLAS ORG 8.700"L X 7.450"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SE120,OR

Area (L x W)	418 cm˛
Area (L x W)	64.8 in˛
Container Type	Case
Design	Hinged Lid, Equipment Case
Features	Airtight, Watertight
Height [z]	98.83 mm
Height [z]	3.891 in
Material	Plastic, Polypropylene
Material Flammability Rating	UL-HB75
Size / Dimension [x]	220.98 mm
Size / Dimension [x]	8.7 "
Size / Dimension [y]	7.45 in
Size / Dimension [y]	189.23 mm
Weight	1.5 lb
Weight	680.4 g

SE120 Series

Part	Material	Material Flammability Rating	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Weight	Weight	Area (L x W)	Area (L x W)	Color	Container Type	Design
Serpac SE120FML,BK	Plastic Polypropylene	UL-HB75	Foam Insert Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	725.7 g	1.6 lbs	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid
Serpac SE120PL,BK	Plastic Polypropylene	UL-HB75	Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid
Serpac SE120FPL,BK	Plastic Polypropylene	UL-HB75	Foam Insert Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	725.7 g	1.6 lbs	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid
Serpac SE120FML,OR	Plastic Polypropylene	UL-HB75	Foam Insert Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	725.7 g	1.6 lbs	418 cm˛	64.8 in˛		Case	Equipment Case Hinged Lid
Serpac SE120ML,BK	Plastic Polypropylene	UL-HB75	Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid
Serpac SE120PL,YL	Plastic Polypropylene	UL-HB75	Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛	Yellow	Case	Equipment Case Hinged Lid
Serpac SE120,OR	Plastic Polypropylene	UL-HB75	Airtight Watertight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛		Case	Equipment Case Hinged Lid
Serpac SE120PL,OR	Plastic Polypropylene	UL-HB75	Locks Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛		Case	Equipment Case Hinged Lid
Serpac SE120,BK	Plastic Polypropylene	UL-HB75	Airtight Watertight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	680.4 g	1.5 lb	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid
Serpac SE120F,BK	Plastic Polypropylene	UL-HB75	Foam Insert Watertight/Airtight	7.45 in	220.98 mm	189.23 mm	8.7 "	98.83 mm	3.891 in	725.7 g	1.6 lbs	418 cm˛	64.8 in˛	Black	Case	Equipment Case Hinged Lid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.42
		10	$ 21.93
		25	$ 19.82
		50	$ 18.50
		100	$ 17.17
		250	$ 16.51
		500	$ 16.35

Description

General part information

SE120 Series

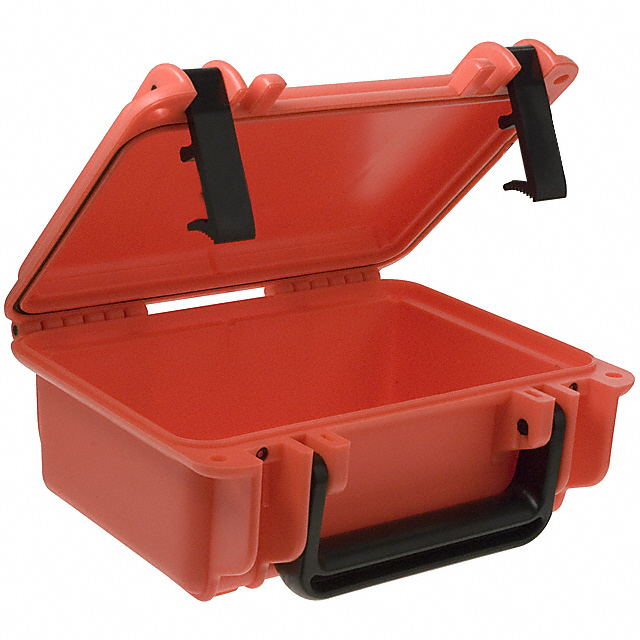

Case Plastic, Polypropylene Orange Equipment Case, Hinged Lid 8.700" L x 7.450" W (220.98mm x 189.23mm) X 3.891" (98.83mm)

Documents

Technical documentation and resources

No documents available
