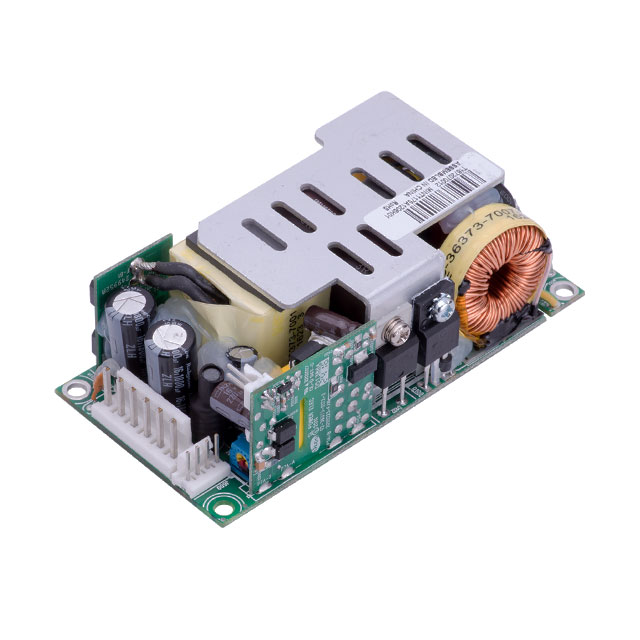

MINT1175A1506K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 120W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	MINT1175A1506K01

Applications	Medical
Approval Agency	CE
Current - Output 1	8 A
Efficiency	90 %
Features	Standby Output, Universal Input, Remote On/Off, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	120 W, 175 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Features	Mounting Type	Type	Efficiency	Power (Watts)	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs
SL POWER / Advanced Energy MINT1175A1506K01	Medical	90 VAC	264 VAC	15 V	8 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	CE	Adjustable Output Remote On/Off Standby Output Universal Input	Chassis Mount	Open Frame	90 %	120 W 175 W	4000 V	-10 °C	70 °C	1
SL POWER / Advanced Energy MINT1175A2406K01	Medical	90 VAC	264 VAC	24 V	5 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	CE	Adjustable Output Remote On/Off Standby Output Universal Input	Chassis Mount	Open Frame	90 %	120 W 175 W	4000 V	-10 °C	70 °C	1
SL POWER / Advanced Energy MINT1175A5606K01	Medical	90 VAC	264 VAC	56 V	2.1 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	CE	Adjustable Output Remote On/Off Standby Output Universal Input	Chassis Mount	Open Frame	90 %	120 W 175 W	4000 V	-10 °C	70 °C	1
SL POWER / Advanced Energy MINT1175A1206K01	Medical	90 VAC	264 VAC	12 V	10 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	CE	Adjustable Output Remote On/Off Standby Output Universal Input	Chassis Mount	Open Frame	90 %	120 W 175 W	4000 V	-10 °C	70 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
