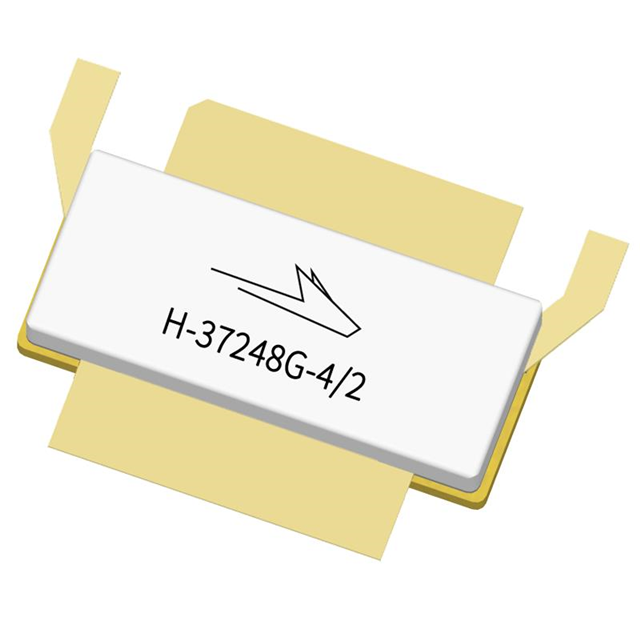

PXFE181507FC-V1-R2
MACOM Technology Solutions
RF MOSFET LDMOS 28V H-37248G-4
Deep-Dive with AI
Search across all available documentation for this part.
PXFE181507FC-V1-R2
MACOM Technology Solutions
RF MOSFET LDMOS 28V H-37248G-4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXFE181507FC-V1-R2 |
|---|---|
| Current - Test | 900 mA |
| Current Rating (Amps) | 10 µA |
| Frequency [Max] | 1.88 GHz |
| Frequency [Min] | 1.805 GHz |
| Gain | 20 dBi |
| Mounting Type | Surface Mount |
| Package / Case | H-37248G-4/2 |
| Power - Output | 175 W |
| Supplier Device Package | H-37248G-4/2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 59.62 | |
Description
General part information
PXFE181507 Series
RF Mosfet 28 V 900 mA 1.805GHz ~ 1.88GHz 20dB 175W H-37248G-4/2
Documents
Technical documentation and resources
No documents available
