IT06-6S-000-N

Active

ITT Cannon, LLC

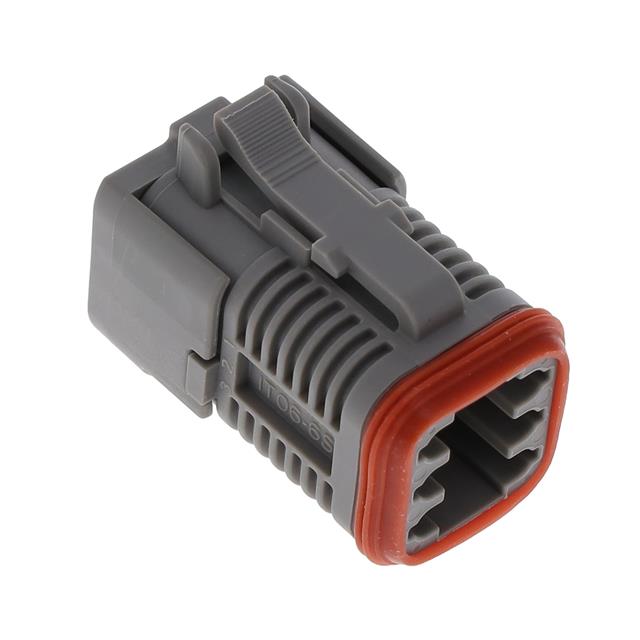

CONN PLUG HSG 6POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 6POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-6S-000-N

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Contact Termination	Mounting Type	Connector Type	Number of Rows	Color	Number of Positions	Insulation Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Features
ITT Cannon, LLC IT06-6S-004-N	Crimp	Free Hanging (In-Line)	Plug	3	Black	6	Glass Filled Nylon Polyamide (PA)	Latch Lock	-55 °C	125 °C	Female Socket	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-6S-000	Crimp	Free Hanging (In-Line)	Plug	3	Gray	6	Glass Filled Nylon Polyamide (PA)	Latch Lock	-55 °C	125 °C	Female Socket	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-6S-006	Crimp	Free Hanging (In-Line)	Plug	3	Black	6	Glass Filled Nylon Polyamide (PA)	Latch Lock	-55 °C	125 °C	Female Socket
ITT Cannon, LLC IT06-6S-000-N	Crimp	Free Hanging (In-Line)	Plug	3	Gray	6	Glass Filled Nylon Polyamide (PA)	Latch Lock	-55 °C	125 °C	Female Socket	Cap (Cover) IP67 IP68 IP69K Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Plug Gray
