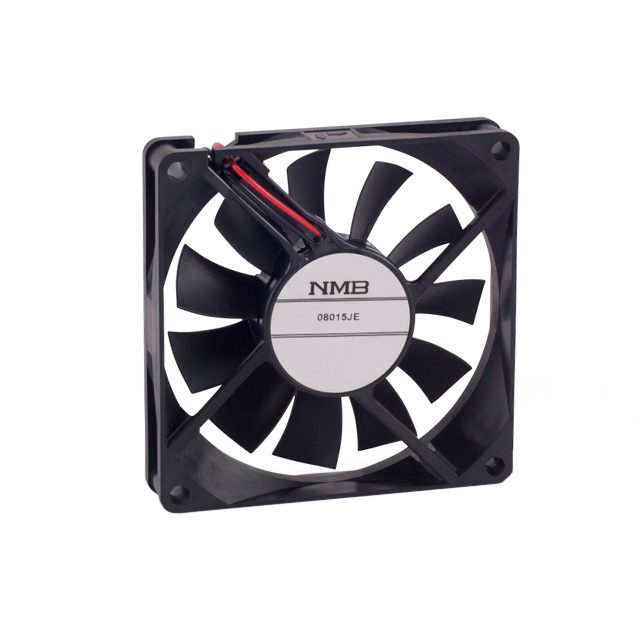

08015JE-12M-BA-F0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 15 MM, BALL BEARING, 22.25 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 15 MM, BALL BEARING, 22.25 CFM

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Noise	Size / Dimension [y]	Size / Dimension [x]	Termination	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Features	Material - Blade	Current Rating (Amps)	RPM	Fan Type	Power (Watts)	Static Pressure	Static Pressure	Lifetime @ Temp.	Voltage - Rated
NMB TECHNOLOGIES 08015JE-12M-BA-F0	Plastic	15 mm	40 °C	-40 °C	-40 °C	40 °C	0.622 m³/min	22.2 CFM	32 dB	80 mm	80 mm	2 Wire Leads	Ball	13.2 VDC	7 V	Auto Restart	Plastic	100 mA	2800 RPM	Tubeaxial	1.2 W	0.1 in H2O	24.9 Pa	70000 Hrs	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 22.2 CFM (0.622mł/min) 2 Wire Leads
