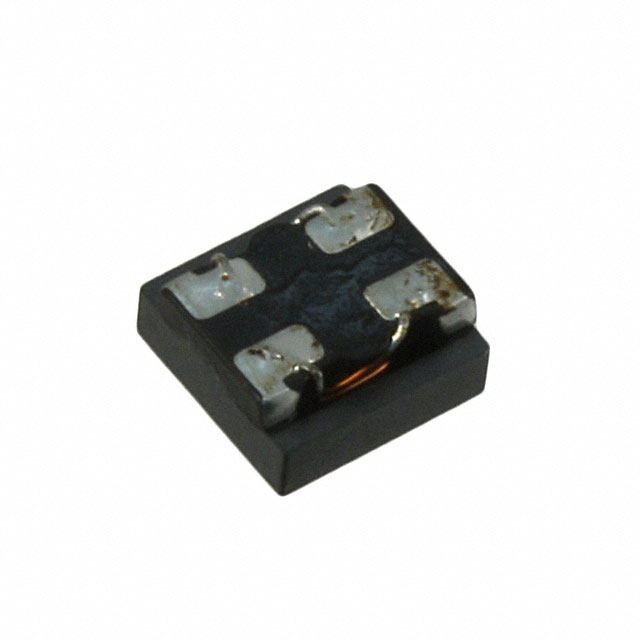

DLW5BTN142SQ2L

Obsolete

Murata Power Solutions Inc.

CHOKE COMMON MODE 1400 OHM 2020

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CHOKE COMMON MODE 1400 OHM 2020

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max) [Max]	Impedance @ Frequency	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Voltage Rating - DC	Filter Type	DC Resistance (DCR) (Max)
Murata Power Solutions Inc. DLW5BTN251SQ2L	14 mOhm	250 Ohms	0.098 in	2.5 mm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	4 J-Lead Horizontal	5 A	85 °C	-40 °C	2	50 VDC	Power Signal Line
Murata Power Solutions Inc. DLW5BTN102SQ2L		1 kOhms	0.098 in	2.5 mm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	4 J-Lead Horizontal	2 A	85 °C	-40 °C	2	50 VDC	Power Signal Line	24 mOhm
Murata Power Solutions Inc. DLW5BTN142SQ2L		1.4 kOhms	0.098 in	2.5 mm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	4 J-Lead Horizontal	1.5 A	85 °C	-40 °C	2	50 VDC	Power Signal Line	40 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Line Common Mode Choke Surface Mount 1.4 kOhms @ 100 MHz 1.5A DCR 40mOhm (Typ)
