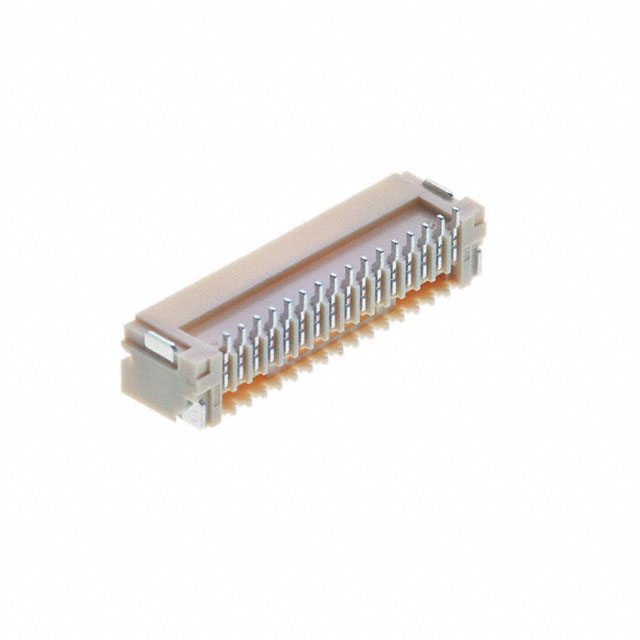

BM16B-ZESS-TBT(LF)(SN)

Active

JST Sales America Inc.

CONN HEADER SMD 16POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 16POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM16B-ZESS-TBT(LF)(SN)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Current Rating (Amps)	Style	Contact Type	Shrouding	Termination	Voltage Rating	Number of Positions	Insulation Material	Insulation Color	Mounting Type	Contact Shape	Fastening Type	Contact Material	Material Flammability Rating	Connector Type	Number of Positions Loaded	Mated Stacking Heights	Number of Rows	Contact Finish - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
JST Sales America Inc. BM16B-ZESS-TBT(LF)(SN)	2 A	Board to Cable/Wire	Outer Shroud Contact	Shrouded - 4 Wall	Solder	100 V	16	Nylon Polyamide (PA)	Natural	Surface Mount	Rectangular	Locking Ramp	Copper Alloy	UL94 V-0	Header	All	9.4 mm	1	Tin	Pick and Place Solder Retention	-25 °C	85 °C	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 16 position 0.059" (1.50mm)
