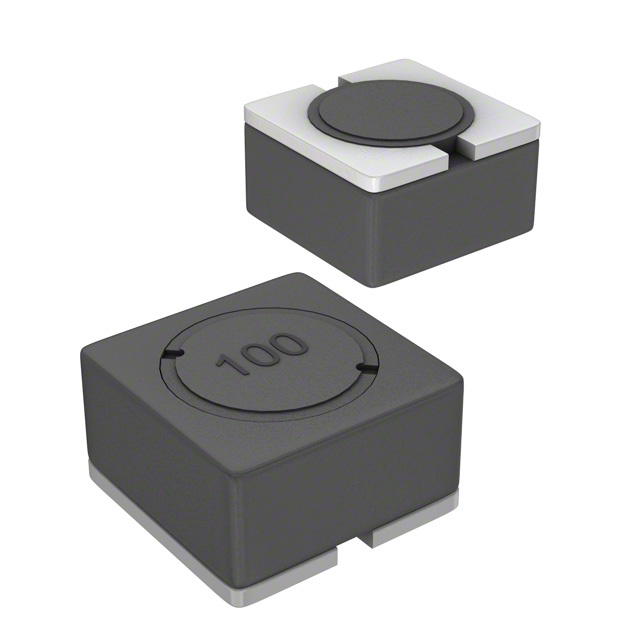

SRR6038-100Y - SRR6038 Series

SRR6038-100Y

Active
Bourns Inc.

POWER INDUCTOR (SMD), 10 ΜH, 2 A, SHIELDED, 2.05 A, SRR6038 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
SRR6038-100Y - SRR6038 Series

SRR6038-100Y

Active
Bourns Inc.

POWER INDUCTOR (SMD), 10 ΜH, 2 A, SHIELDED, 2.05 A, SRR6038 SERIES

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSRR6038-100Y
Current - Saturation (Isat)2.05 A
Current Rating (Amps)2 A
DC Resistance (DCR) [Max]38 mOhm
Frequency - Self Resonant24.9 MHz
Height - Seated (Max) [Max]0.157 in
Height - Seated (Max) [Max]4 mm
Inductance10 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
Q @ Freq8.8, 2.52 MHz
ShieldingShielded
Size / Dimension [x]6.8 mm
Size / Dimension [x]0.268 in
Size / Dimension [y]0.268 in
Size / Dimension [y]6.8 mm
Tolerance30 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.55
10$ 0.47
25$ 0.43
50$ 0.39
100$ 0.35
250$ 0.33
500$ 0.28
Digi-Reel® 1$ 0.55
10$ 0.47
25$ 0.43
50$ 0.39
100$ 0.35
250$ 0.33
500$ 0.28
Tape & Reel (TR) 1000$ 0.28
LCSCPiece 1$ 1.54
10$ 1.31
30$ 1.17
100$ 1.03
500$ 0.96
1000$ 0.93
NewarkEach (Supplied on Full Reel) 1000$ 0.35
2000$ 0.34
4000$ 0.34
6000$ 0.34
10000$ 0.34

Description

General part information

SRR6038 Series

10 µH Shielded Drum Core, Wirewound Inductor 2 A 38mOhm Max Nonstandard
