800-1603-0-SJT0-BL-00100

Obsolete

CnC Tech, LLC

CORD 16AWG IEC320 RA - CBL 3.28'

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CORD 16AWG IEC320 RA - CBL 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	800-1603-0-SJT0-BL-00100

1st Connector	Right Angle, IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Black
Cord Type	SJT
Length [x]	1 m
Length [x]	3.28 ft
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Shielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC
Wire Gauge	16 AWG

Part	Approval Agency Marking	Shielding	Operating Temperature	Current Rating (Amps)	Number of Conductors	Approved Countries	Style	Voltage Rating	Length [x]	Length [x]	Wire Gauge	2nd Connector	1st Connector	Color	Cord Type
CnC Tech, LLC 800-1603-2-SJT0-BL-00200-1	cUL UL	Unshielded	105 C	13 A	3	Canada United States	Female Sockets (Slots) to Leads	250 VDC	2 m	6.56 ft	16 AWG	Cable	IEC 320-C13 Right Angle	Black	SJT
CnC Tech, LLC 800-1603-2-SJT0-BL-00050-1	cUL UL	Unshielded	105 C	13 A	3	Canada United States	Female Sockets (Slots) to Leads	250 VDC	500 mm	1.64 ft	16 AWG	Cable	IEC 320-C13 Right Angle	Black	SJT
CnC Tech, LLC 800-1603-2-SJT0-BL-00100	CSA UL	Unshielded	105 C	13 A	3	Canada United States	Female Sockets (Slots) to Leads	250 VDC	1 m	3.28 ft	16 AWG	Cable	IEC 320-C13 Right Angle	Black	SJT
CnC Tech, LLC 800-1603-0-SJT0-BL-00100	CSA UL	Shielded	60 °C		3	Canada United States	Female Sockets (Slots) to Leads	250 VDC	1 m	3.28 ft	16 AWG	Cable	IEC 320-C13 Right Angle	Black	SJT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

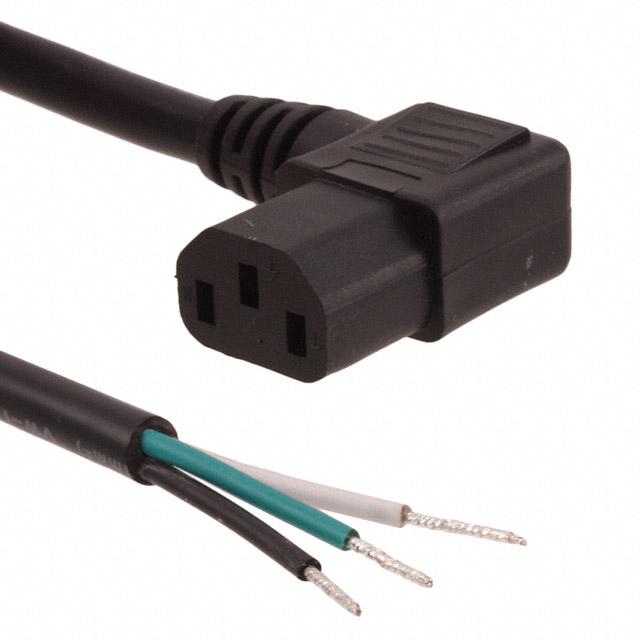

3.28' (1.00m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT
