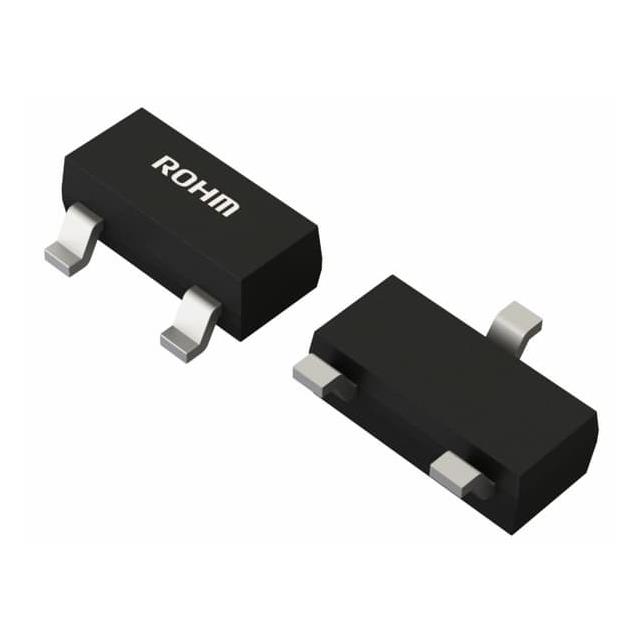

SST3906HZGT116
ActiveRohm Semiconductor
PNP, SOT-23, -40V -200MA, GENERAL PURPOSE TRANSISTOR FOR AUTOMOTIVE
Deep-Dive with AI
Search across all available documentation for this part.
SST3906HZGT116
ActiveRohm Semiconductor
PNP, SOT-23, -40V -200MA, GENERAL PURPOSE TRANSISTOR FOR AUTOMOTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SST3906HZGT116 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 200 mA |
| Current - Collector Cutoff (Max) [Max] | 50 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 100 |
| Frequency - Transition | 250 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power - Max [Max] | 200 mW |
| Qualification | AEC-Q101 |
| Supplier Device Package | SST3 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 400 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| 10 | $ 0.13 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.19 | ||
| 10 | $ 0.13 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.03 | ||
| 6000 | $ 0.03 | |||
| 9000 | $ 0.03 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
| 150000 | $ 0.02 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.17 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
Description
General part information
SST3906HZG Series
Various products are available in lineup developed focusing on energy-saving and high reliability as main concepts, covering from ultra-compact packages to power-packages to meet the needs in market.
