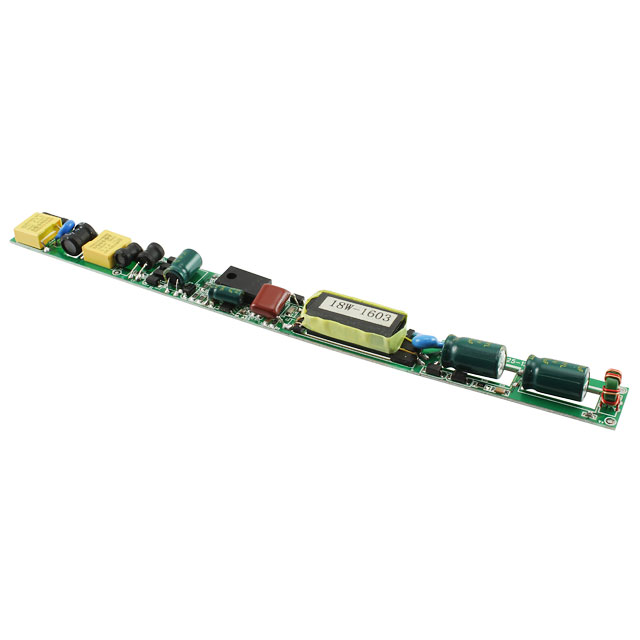

FT825-12S480MA

Active

Fremont Micro Devices Ltd

LED DRIVER CC AC/DC 25-42V 480MA

Search across all available documentation for this part.

Active

Fremont Micro Devices Ltd

LED DRIVER CC AC/DC 25-42V 480MA

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Number of Outputs	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Max) [Max]	Supplier Device Package	Applications	Internal Switch(s)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Input (Max) [Max]	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Approval Agency	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]
Fremont Micro Devices Ltd FT825-RT	AC DC Offline Switcher	Surface Mount	1	8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	20 V	8-SOP	Lighting
Fremont Micro Devices Ltd FT825-12S480MA	Constant Current	Chassis Mount	1										0.39 in	8.5 in	0.69 "	17.5 mm	216 mm	10 mm	18 W	264 VAC	AC DC Converter	42 V	25 V	Connector	EN IEC	480 mA	88 %	90 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

480mA 25 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
