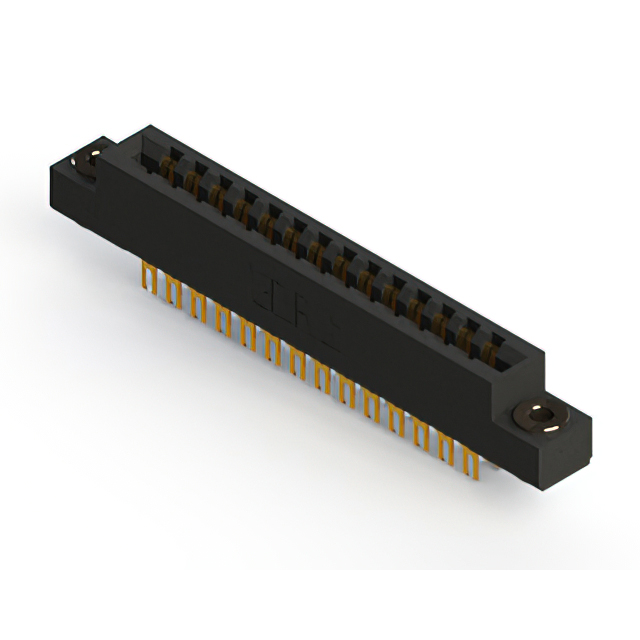

355-028-500-503
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-028-500-503
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-028-500-503 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
355-028 Series
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Number of Rows | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions | Material - Insulation | Termination Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Card Type | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder | Through Hole | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Card Extender |
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder | Panel Mount Through Hole | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Copper Alloy | 14 | 2 | Female | -40 °C | 105 ░C | Dual | 28 | Polyester Thermoplastic | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Gold | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
