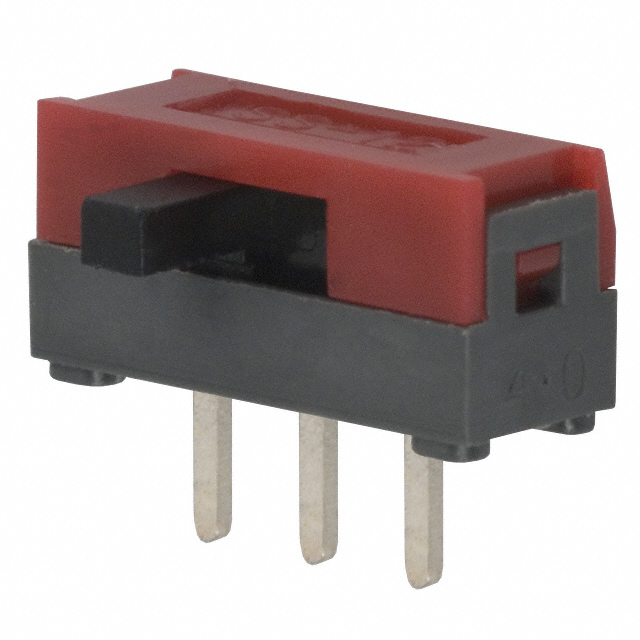

SS12SDH2
ActiveNKK Switches
SWITCH SLIDE SPDT 100MA 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS12SDH2
ActiveNKK Switches
SWITCH SLIDE SPDT 100MA 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS12SDH2 |
|---|---|
| Actuator Length [x] | 2.5 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Phosphor Bronze |
| Contact Timing | Shorting |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -15 °C |
| Switch Function | On-On |
| Switch Travel | 2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.87 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.65 | |||
| 80 | $ 1.44 | |||
| 230 | $ 1.30 | |||
| 440 | $ 1.21 | |||
| 945 | $ 1.12 | |||
| 2400 | $ 1.02 | |||
| 4900 | $ 0.94 | |||
Description
General part information
SS12SD Series
Slide Switch SPDT Through Hole, Right Angle
