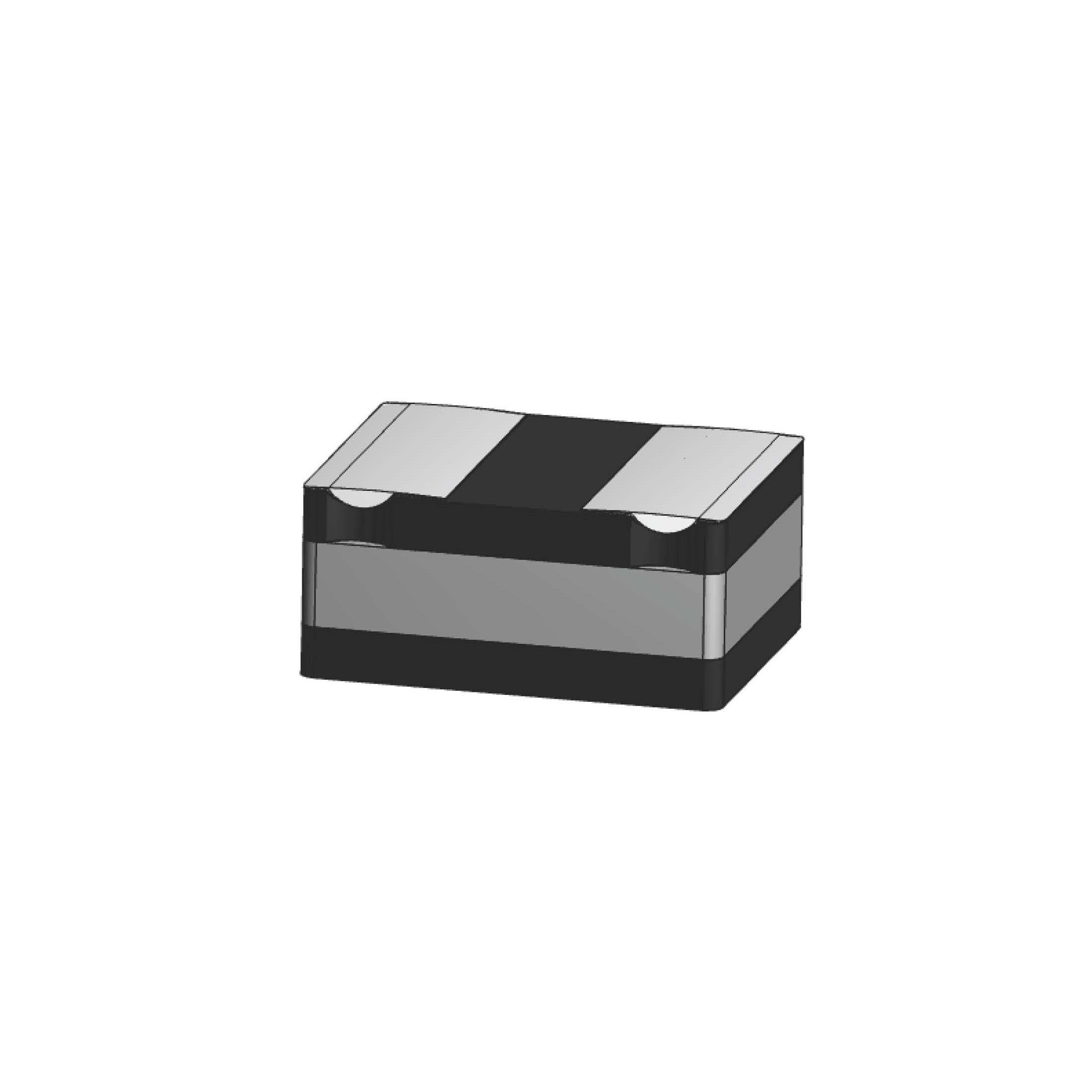

SDER041B-220MS
ActiveDelta Electronics/Cyntec
FIXED IND 22UH 950MA 492MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SDER041B-220MS
ActiveDelta Electronics/Cyntec
FIXED IND 22UH 950MA 492MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDER041B-220MS |
|---|---|
| Current - Saturation (Isat) | 630 mA |
| Current Rating (Amps) | 950 mA |
| DC Resistance (DCR) | 492 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.19 | ||
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 2000 | $ 0.09 | ||
Description
General part information
SDER041B Series
22 µH Shielded Inductor 950 mA 492mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
