XE164H72F66LACFXQMA1

Unknown

Infineon Technologies

IC MCU 16BIT 576KB FLASH 100LQFP

Deep-Dive with AI

Search across all available documentation for this part.

XE164H72F66LACFXQMA1

Unknown

Infineon Technologies

IC MCU 16BIT 576KB FLASH 100LQFP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XE164H72F66LACFXQMA1

Connectivity	SSC, LINbus, CANbus, USI, EBI/EMI, SPI, UART/USART, I2C
Core Processor	C166SV2
Core Size	16-Bit
Data Converters [custom]	10
Data Converters [custom]	16
Mounting Type	Surface Mount
Number of I/O	75 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

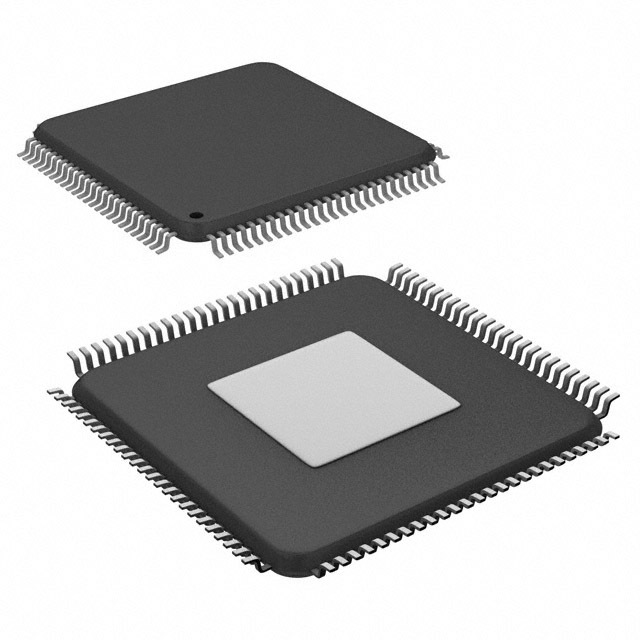

Package / Case	100-LQFP Exposed Pad
Peripherals	WDT, I2S, PWM, POR
Program Memory Size	576 KB
Program Memory Type	FLASH
RAM Size	50 K
Speed	66 MHz
Supplier Device Package	PG-LQFP-100-8
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

XE164 Series

Part	Package / Case	Core Size	Data Converters	Data Converters	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	RAM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Oscillator Type	Program Memory Size	Program Memory Type	Number of I/O	Mounting Type	Supplier Device Package	Connectivity	Data Converters [custom]	Data Converters [custom]	RAM Size
Infineon Technologies XE164G96F66LACFXQMA1	100-LQFP Exposed Pad	16-Bit	A/D	10 b 11	66 MHz	85 °C	-40 °C	C166SV2	82K x 8	5.5 V	3 V	I2S POR PWM WDT	Internal	768 KB	FLASH	75 I/O	Surface Mount	PG-LQFP-100-3	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI
Infineon Technologies XE164H96F66LACFXQMA1	100-LQFP Exposed Pad	16-Bit			66 MHz	85 °C	-40 °C	C166SV2	82K x 8	5.5 V	3 V	I2S POR PWM WDT	Internal	768 KB	FLASH	75 I/O	Surface Mount	PG-LQFP-100-8	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	10	16
Infineon Technologies XE164H72F66LACFXQMA1	100-LQFP Exposed Pad	16-Bit			66 MHz	85 °C	-40 °C	C166SV2		5.5 V	3 V	I2S POR PWM WDT	Internal	576 KB	FLASH	75 I/O	Surface Mount	PG-LQFP-100-8	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	10	16	50 K
Infineon Technologies XE164F48F66LACFXUMA1	100-LQFP Exposed Pad	16-Bit			66 MHz	85 °C	-40 °C	C166SV2		5.5 V	3 V	I2S POR PWM WDT	Internal	384 KB	FLASH	75 I/O	Surface Mount	PG-LQFP-100-3	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	10	16
Infineon Technologies XE164F96F66LACFXUMA1	100-LQFP Exposed Pad	16-Bit			66 MHz	85 °C	-40 °C	C166SV2	82K x 8	5.5 V	3 V	I2S POR PWM WDT	Internal	768 KB	FLASH	75 I/O	Surface Mount	PG-LQFP-100-3	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	10	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XE164 Series

C166SV2 XE16x Microcontroller IC 16-Bit 66MHz 576KB (576K x 8) FLASH PG-LQFP-100-8

Documents

Technical documentation and resources

No documents available
