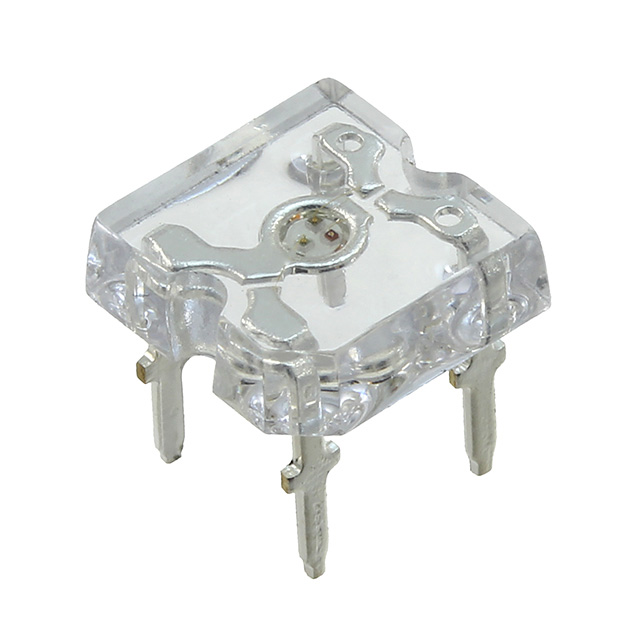

R50RGB-F-0160

Active

Bivar Inc.

LED, RGB, RED, GREEN, BLUE, THROUGH HOLE, 160 °, DOME, R 50MA, G 50MA, B 50MA

Search across all available documentation for this part.

Active

Bivar Inc.

LED, RGB, RED, GREEN, BLUE, THROUGH HOLE, 160 °, DOME, R 50MA, G 50MA, B 50MA

Technical Specifications

Parameters and characteristics for this part

Specification	R50RGB-F-0160

Color	Red, Green, Blue
Configuration	Common Cathode
Current - Test	50 mA
Height (Max) [Max] [z]	4.4 mm
Lens Color	Colorless
Lens Size	7.6 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating	600 mcd, 150 mcd, 800 mcd
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	7.6 mm
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ) [custom]	2.6 V
Voltage - Forward (Vf) (Typ) [custom]	3.8 V
Voltage - Forward (Vf) (Typ) [custom]	3.8 V
Wavelength - Dominant	465 nm, 520 nm, 628 nm

Part	Wavelength - Dominant	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Mounting Type	Lens Size	Millicandela Rating	Viewing Angle	Package / Case	Package / Case	Package / Case	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Lens Style	Configuration
Bivar Inc. R50RGB-F-0160	465 nm 520 nm 628 nm	Colorless	Clear	2.6 V	3.8 V	3.8 V	Through Hole	7.6 mm	150 mcd 600 mcd 800 mcd	160 °	4-DIP	0.2 in	0.2 in	50 mA	Blue Green Red	7.6 mm	7.6 mm	4.4 mm	Square with Flat Top	Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 628nm Red, 520nm Green, 465nm Blue LED Indication - Discrete 2.6V Red, 3.8V Green, 3.8V Blue 4-DIP (0.200", 5.08mm)
