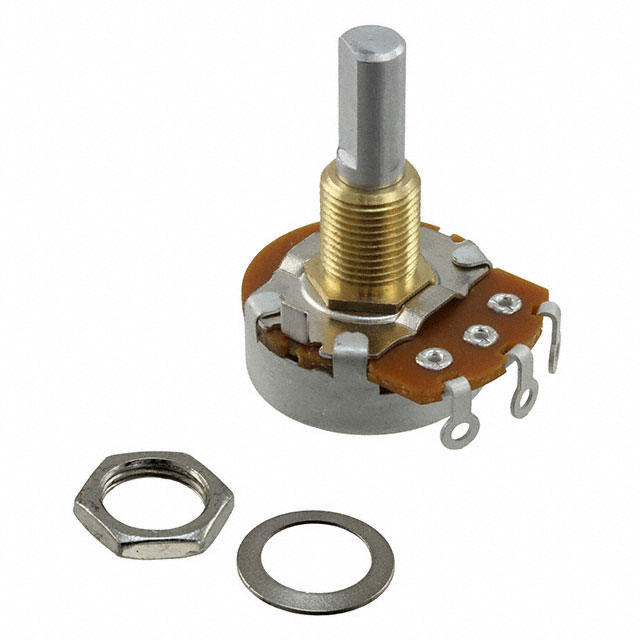

P230-3FA25BR1K

Active

TT Electronics/BI

POT 1K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P230-3FA25BR1K

Active

TT Electronics/BI

POT 1K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P230-3FA25BR1K

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [x]	0.984 in
Actuator Length [x]	25 mm
Actuator Type	Flatted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	1 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [diameter]	0.945 in
Size - Body [diameter]	24 mm
Taper	Linear
Termination Style	Solder Lug
Tolerance	20 %

P230 Series

Part	Tolerance	Rotation	Actuator Length [z]	Actuator Length [z]	Number of Turns	Size - Body [diameter]	Size - Body [diameter]	Bushing Thread	Resistive Material	Termination Style	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)	Adjustment Type	Power (Watts)	Power (Watts)	Number of Gangs	Actuator Type	Taper	Actuator Length	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Diameter [diameter]
TT Electronics/BI P230-2EC20AR500K	20 %	300 ░	20 mm	0.787 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in	500 kOhms	User Defined	0.25 W	250 mW	1	Slotted	Logarithmic
TT Electronics/BI P230-2FC20BR500K	20 %	300 ░	20 mm	0.787 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in	500 kOhms	User Defined	0.5 W	0.5 W	1	Flatted	Linear
TT Electronics/BI P230-1FC15BR10K	20 %	300 ░		0.591 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in		User Defined	0.5 W	0.5 W	1	Flatted	Linear	15 mm	10k
TT Electronics/BI P230-1FC25BR100K	20 %	300 ░			1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in	100 kOhms	User Defined	0.5 W	0.5 W	1	Flatted	Linear			0.984 in	25 mm
TT Electronics/BI P230-1FD20BR150K	20 %	300 ░	20 mm	0.787 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in		User Defined	0.5 W	0.5 W	1	Flatted	Linear		150k
TT Electronics/BI P230-1FC20AR250K	20 %	300 ░	20 mm	0.787 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in		User Defined	0.25 W	250 mW	1	Flatted	Logarithmic		250k
TT Electronics/BI P230-2QC19BR250K	20 %	300 ░		0.748 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in		User Defined	0.5 W	0.5 W	1	Knurled and Slotted	Linear	19 mm	250k
TT Electronics/BI P230-2MC16BR300K	20 %	300 ░	16 mm	0.63 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug		0.236 in		User Defined	0.5 W	0.5 W	1	Knurled and Slotted	Linear		300k			6 mm
TT Electronics/BI P230-3FA25BR1K	20 %	300 ░			1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in	1 kOhms	User Defined	0.5 W	0.5 W	1	Flatted	Linear			0.984 in	25 mm
TT Electronics/BI P230-2EC20AR1M	20 %	300 ░	20 mm	0.787 in	1	0.945 in	24 mm	3/8-32	Conductive Plastic	Solder Lug	6.35 mm	0.25 in		User Defined	0.25 W	250 mW	1	Slotted	Logarithmic		1M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.42
		10	$ 3.55
		25	$ 3.25
		40	$ 3.11
		80	$ 2.91
		230	$ 2.62
		440	$ 2.46
		945	$ 2.28

Description

General part information

P230 Series

1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Solder Lug
