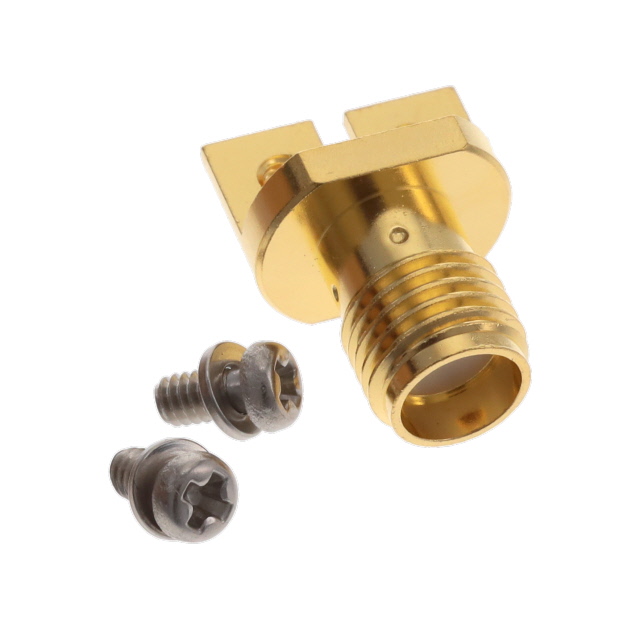

HRM(G)-300-467B-2(01)

Active

Hirose Electric USA, Inc.

SMA COAXIAL CONNECTORS UP TO 28GHZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HRM(G)-300-467B-2(01)

Active

Hirose Electric USA, Inc.

SMA COAXIAL CONNECTORS UP TO 28GHZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRM(G)-300-467B-2(01)

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	28 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

HRM Series

Part	Conversion Type	Impedance	Style	Convert From (Adapter End)	Convert To (Adapter End)	Mating Cycles	Center Gender	Frequency - Max [Max]	Fastening Type	Adapter Type	Adapter Series	Mounting Type	Center Contact Plating	Features	Contact Termination	Shield Termination	Body Finish	Dielectric Material	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Style	Connector Type	Center Contact Material	Body Material	Tool Type	For Use With/Related Products	Accessory Type	Mounting Feature	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Cable Type	2nd Contact Gender	1st Connector Mounting Type	Color	2nd Connector	1st Connector	Overall Impedance	Length [x]	Length [x]	Cable Type [diameter]
Hirose Electric USA, Inc. HRMJ-FLJ(40)	Between Series	50 Ohms	Straight	Female Socket SMA Jack	Female Socket FL Jack	500	Female to Female	2 GHz	Push-Pull Threaded	Jack to Jack	SMA to FL	Free Hanging (In-Line)	Gold
Hirose Electric USA, Inc. HRM(G)-300-467B-2(01)		50 Ohms				500		28 GHz				Board Edge End Launch	Gold	Mounting Hardware	Compression	Screw	Gold	Polytetrafluoroethylene (PTFE)	1	85 °C	-55 °C	Gold	SMA	Female Socket Receptacle	Beryllium Copper	Brass
Hirose Electric USA, Inc. HRM-T-7																											Insertion Tool	Coaxial RF Connectors
Hirose Electric USA, Inc. HRM-T-8
Hirose Electric USA, Inc. HRM-RPA-JJ(40)																													Rotary Joint
Hirose Electric USA, Inc. HRM(G)-300-468B-2(01)		50 Ohms				500		28 GHz					Gold	Mounting Hardware	Compression	Screw	Gold	Polytetrafluoroethylene (PTFE)	1	85 °C	-55 °C	Gold	SMA	Female Socket Receptacle	Beryllium Copper	Brass				Flange
Hirose Electric USA, Inc. HRMJ-E.FLP-5(40)	Between Series	50 Ohms	Straight	Female Socket SMA Jack	E.FL Plug Female Socket	10000	Female to Female	2 GHz	Snap-On Threaded	Plug to Jack	SMA to E.FL	Free Hanging (In-Line)	Gold				Nickel	Polytetrafluoroethylene (PTFE)		85 °C	-40 °C				Beryllium Copper	Brass
Hirose Electric USA, Inc. HRM(G)-306B(40)
Hirose Electric USA, Inc. HRMP-UFLHF6-068N1T-A500RS			U.FL (UMCC) to SMA					8 GHz												105 ░C	-40 °C										Male	Free Hanging (In-Line)	50 cm	19.69 "	1.13mm OD Coaxial Cable	Female	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle	SMA Plug	50 Ohms
Hirose Electric USA, Inc. HRMP-UFLHF6-088N2T-A260RS			U.FL (UMCC) to SMA					8 GHz												105 ░C	-40 °C										Male	Free Hanging (In-Line)				Female	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle	SMA Plug	50 Ohms	10.236 in	260 mm	1.37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.64
		20	$ 64.47
		40	$ 61.39
		60	$ 59.66
		100	$ 57.55
Newark	Each	1	$ 103.00
		60	$ 90.80

Description

General part information

HRM Series

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
