FMBD-B92B-2512

Active

SCHURTER Inc.

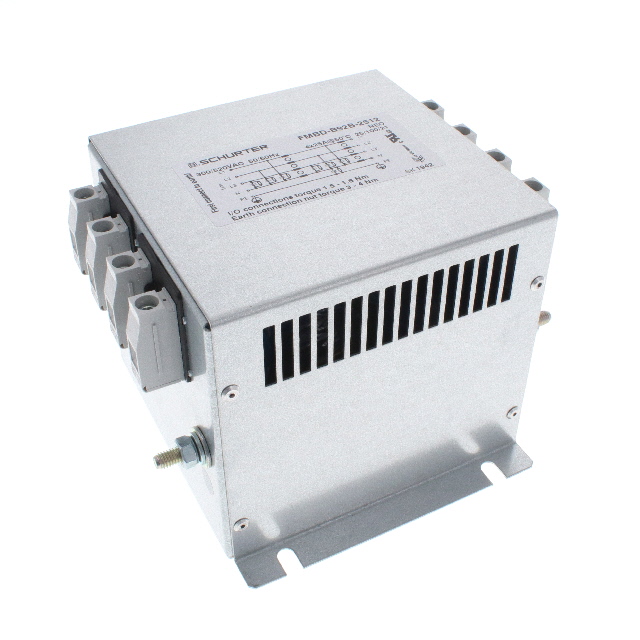

POWER LINE FILTER 3-PHASE 50HZ/60HZ 25A 520VAC TERMINAL BLOCK CHASSIS MOUNT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER LINE FILTER 3-PHASE 50HZ/60HZ 25A 520VAC TERMINAL BLOCK CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FMBD-B92B-2512

Applications	General Purpose
Approval Agency	cURus, VDE, ENEC
Configuration	Two Stage
Current	25 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC [Max]	520 V
Voltage - Rated AC [Min]	300 V

Part	Applications	Termination Style	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Inductance [custom]	Inductance [custom]	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Approval Agency	Mounting Type	Current	Operating Temperature [custom]
SCHURTER Inc. FMBD-B92A-1612	General Purpose	Terminal Block	520 V	300 V	1.3 mH	12 µH	Three Phase (Wye)	60 Hz	50 Hz	Two Stage	cURus ENEC VDE	Chassis Mount	16 A	-25 °C 100 °C
SCHURTER Inc. FMBD-B92B-2512	General Purpose	Terminal Block	520 V	300 V			Three Phase (Wye)	60 Hz	50 Hz	Two Stage	cURus ENEC VDE	Chassis Mount	25 A	-25 °C 100 °C
SCHURTER Inc. FMBD-B92F-K012	General Purpose	Terminal Block	520 V	300 V	300 µH	9 µH	Three Phase (Wye)	60 Hz	50 Hz	Two Stage	cURus ENEC VDE	Chassis Mount	200 A	-25 °C 100 °C
SCHURTER Inc. FMBD-B92E-J212	General Purpose	Terminal Block	520 V	300 V			Three Phase (Wye)	60 Hz	50 Hz	Two Stage	cURus ENEC VDE	Chassis Mount	120 A	-25 °C 100 °C
SCHURTER Inc. FMBD-B92C-6412	General Purpose	Terminal Block	520 V	300 V	700 µH	7.5 mH	Three Phase (Wye)	60 Hz	50 Hz	Two Stage	cURus ENEC VDE	Chassis Mount	64 A	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 240.02

General part information

Three Phase (Wye) EMC/EMI Line Filter 25 A 300V, 520V 50/60Hz Two Stage Terminal Block
