3059J-1-204LF

Active

Bourns Inc.

RES,CERMET,200KOHMS,10+/-% TOL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

RES,CERMET,200KOHMS,10+/-% TOL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Resistive Material	Number of Turns	Resistance	Power (Watts)	Tolerance	Mounting Type
Bourns Inc. 3059J-1-503MLF	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	50 kOhms	1 W	10 %
Bourns Inc. 3059J-1-202	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	2 kOhms	1 W	10 %	Chassis Mount
Bourns Inc. 3059J-1-101MLF	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	100 Ohms	1 W	10 %
Bourns Inc. 3059J-1-253M	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	25 kOhms	1 W	10 %
Bourns Inc. 3059J-1-253MLF	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	25 kOhms	1 W	10 %
Bourns Inc. 3059J-1-203LF	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	20 kOhms	1 W	10 %	Chassis Mount
Bourns Inc. 3059J-1-102	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	1000 Ohms	1 W	10 %	Chassis Mount
Bourns Inc. 3059J-1-200M	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	20 Ohms	1 W	10 %
Bourns Inc. 3059J-1-101	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	100 Ohms	1 W	10 %	Chassis Mount
Bourns Inc. 3059J-1-204LF	100 ppm/°C	Solder Hook	0.315 " 8 mm	0.19 in 4.83 mm	Side Adjustment	Cermet	22	200000 Ohms	1 W	10 %	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

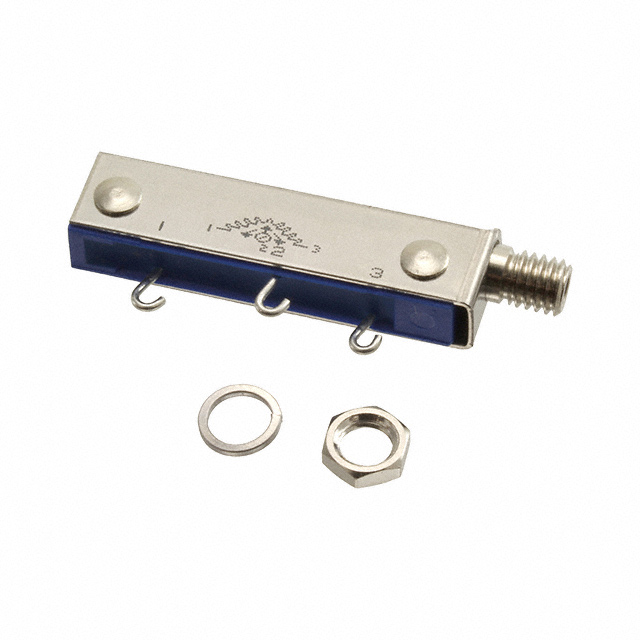

200 kOhms 1W Solder Hook Chassis Mount Trimmer Potentiometer Cermet 22.0 Turn Side Adjustment
