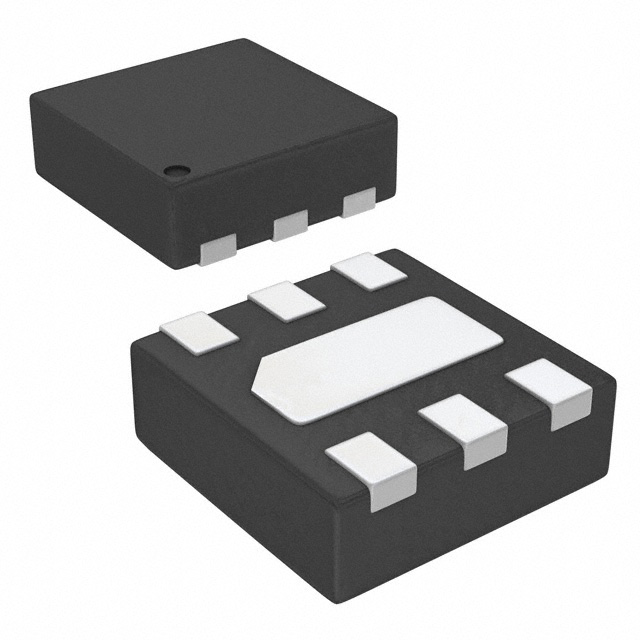

UCLAMP3305P.TCT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 8 V, SLP1616P6, 6 PINS, 3.3 V, 40 W, ΜCLAMP SERIES
Deep-Dive with AI
Search across all available documentation for this part.
UCLAMP3305P.TCT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 8 V, SLP1616P6, 6 PINS, 3.3 V, 40 W, ΜCLAMP SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCLAMP3305P.TCT |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 20 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-UFDFN Exposed Pad |
| Power - Peak Pulse | 40 W |
| Power Line Protection | False |
| Supplier Device Package | SLP1616P6 (1.6x1.6) |
| Type | Zener |
| Unidirectional Channels [custom] | 5 |
| Voltage - Breakdown (Min) [Min] | 3.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 8 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 10 | $ 0.95 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.39 | ||
| 6000 | $ 0.37 | |||
| 9000 | $ 0.35 | |||
| 15000 | $ 0.35 | |||
Description
General part information
UCLAMP3305 Series
8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP1616P6 (1.6x1.6)
