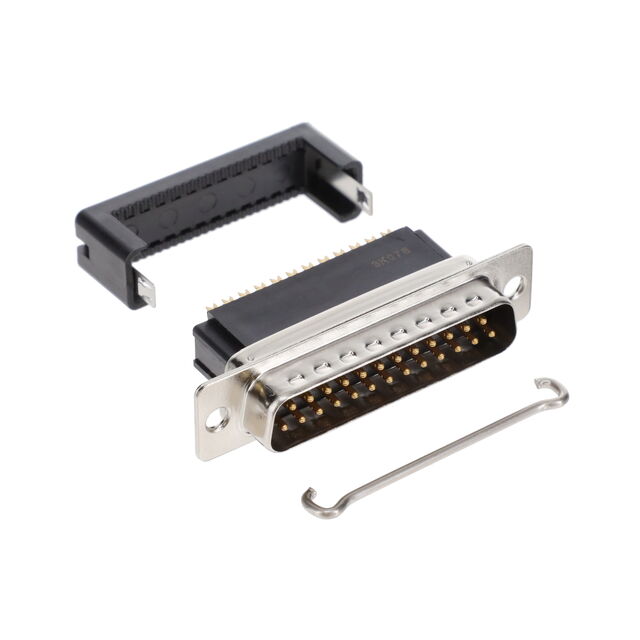

FDB-25PF(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG PNL MNT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	FDB-25PF(05)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Voltage Rating	200 V

Part	Primary Material	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Connector Type	Contact Type	Connector Style	Mounting Type	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Features	Voltage Rating	Number of Rows	Contact Finish	Dielectric Material	Accessory Type
Hirose Electric USA, Inc. FDB-25PF(05)	Metal	Copper Alloy	Black	85 °C	-55 °C	Housing/Shell (Unthreaded)	Male Pins Plug	Signal	D-Sub	Free Hanging (In-Line)	IDC Ribbon Cable	B DB	3	Nickel Plated Steel	Feed Through Grounding Indents	200 V	2	Gold	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. FDB-P																				Press Block
Hirose Electric USA, Inc. FDB-25P(51)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
