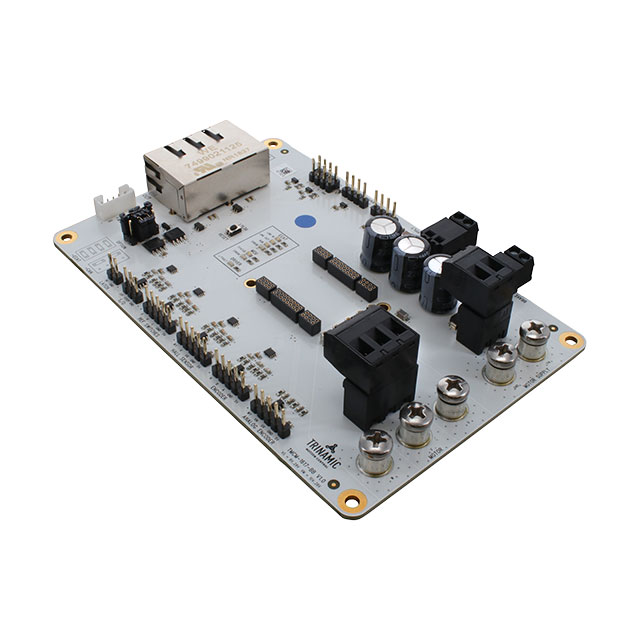

TMCM-1617-BB

Active

Analog Devices Inc./Maxim Integrated

BASEBOARD FOR TMCM-1617 SERVO DR

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BASEBOARD FOR TMCM-1617 SERVO DR

Technical Specifications

Parameters and characteristics for this part

Specification	TMCM-1617-BB

Accessory Type	Base Board
For Use With/Related Products	TMCM-1617

Part	Type	Motor Type	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Control / Drive Type	Interface	For Use With/Related Products	Accessory Type	Voltage - Supply
Analog Devices Inc./Maxim Integrated TMCM-1617-TMCL	Module	Brushless (BLDC)	18 A	28 V	8 V	Chassis Mount	Servo DC	CAN EtherCat RS-485
Analog Devices Inc./Maxim Integrated TMCM-1617-BB									TMCM-1617	Base Board
Analog Devices Inc./Maxim Integrated TMCM-1617-CANOPEN	Module	Brushless (BLDC)	18 A			Chassis Mount	Servo DC	CAN EtherCat RS-485			24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 373.45

General part information

TMCM-1617 - Base Board
