EXN-23360-BL
ActiveBUD INDUSTRIES

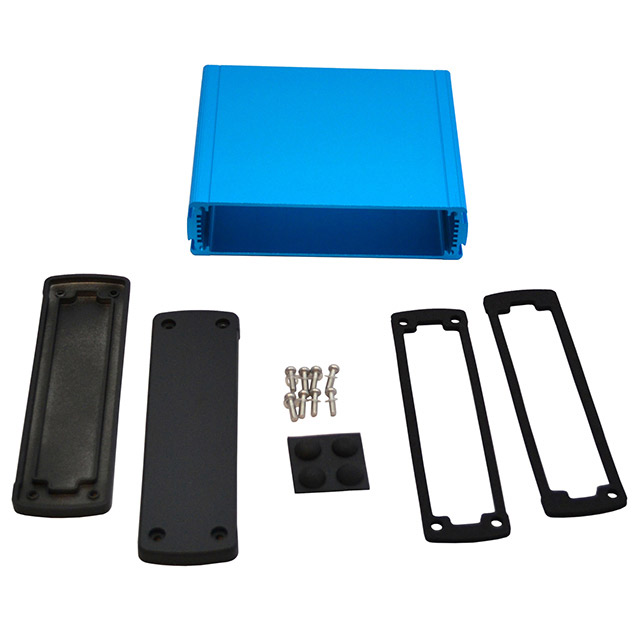

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66
Deep-Dive with AI
Search across all available documentation for this part.
EXN-23360-BL
ActiveBUD INDUSTRIES
METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXN-23360-BL |
|---|---|
| Area (L x W) | 29.3 in² |
| Area (L x W) | 189 cm² |
| Color | Black, Blue |
| Container Type | Box |
| Design | End Panel(s) |
| Features | Card Guides, Sealing Gaskets |
| Height [z] | 41.6 mm |
| Height [z] | 1.638 in |
| Material | Metal, Aluminum |
| Ratings | IP65 |
| Size / Dimension [x] | 5.772 in |
| Size / Dimension [x] | 146.6 mm |
| Size / Dimension [y] | 129 mm |
| Size / Dimension [y] | 5.079 in |
| Thickness | 0.091 in |
| Thickness | 2.3 mm |
| Weight | 0.89 lb |
| Weight | 403.7 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 34.42 | |
| 5 | $ 31.56 | |||
| 10 | $ 28.70 | |||
| 25 | $ 27.28 | |||
| 50 | $ 25.84 | |||
| 100 | $ 23.21 | |||
Description
General part information
EXN-23360 Series
Box Metal, Aluminum Black, Blue End Panel(s) 5.772" L x 5.079" W (146.60mm x 129.00mm) X 1.638" (41.60mm)
Documents
Technical documentation and resources
