CT3320A
ActiveCal Test Electronics

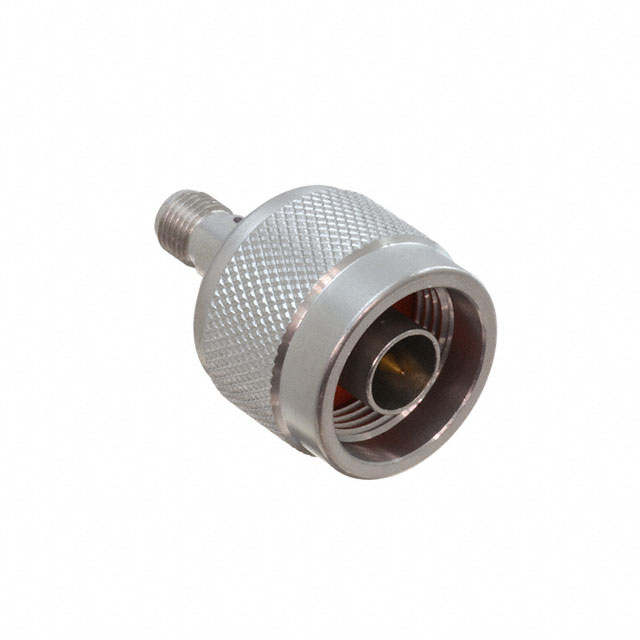

CONN ADAPT N PLUG TO SMA JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT3320A |
|---|---|
| Adapter Type | Plug to Jack |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Frequency - Max [Max] | 12 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.13 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.15 | |
Description
General part information
CT3320 Series
Adapter Coaxial Connector N Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
