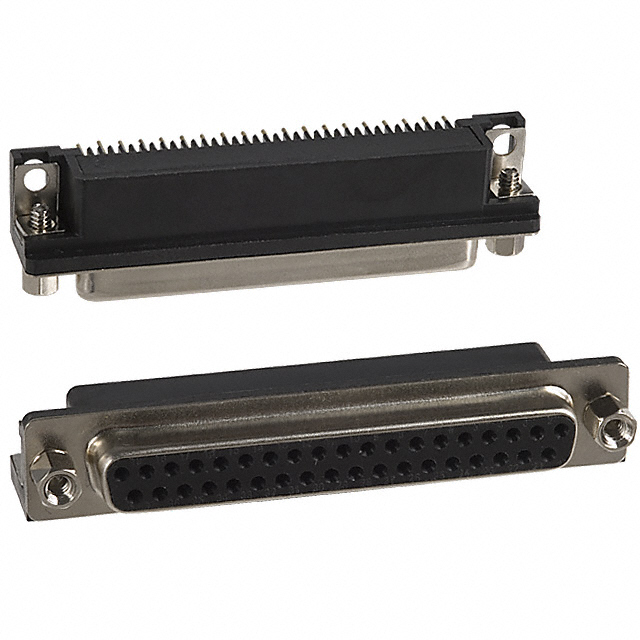

182-037-213R181
ActiveMH Connectors
D SUB CONNECTOR, DB37, 37 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 182 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
182-037-213R181
ActiveMH Connectors
D SUB CONNECTOR, DB37, 37 CONTACTS, RECEPTACLE, THROUGH HOLE, DC, 182 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 182-037-213R181 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Ground Strap |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
182-037 Series
| Part | Dielectric Material | Flange Feature | Number of Positions | Current Rating (Amps) | Shell Size, Connector Layout | Shell Material, Finish | Contact Finish Thickness | Mounting Type | Connector Style | Material Flammability Rating | Backset Spacing | Backset Spacing | Color | Termination | Contact Finish | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Connector Type | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Polyamide (PA9T) Nylon 9T | Housing/Shell (Unthreaded) | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Receptacle Female Sockets | ||
MH Connectors | Polyamide (PA9T) Nylon 9T | Female Screwlock (4-40) Mating Side | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Receptacle Female Sockets | Ground Strap | |
MH Connectors | Polyester Glass Filled | Housing/Shell (Unthreaded) | 37 | 5 A | 4 (DC C) | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Receptacle Female Sockets | Ground Strap | ||
MH Connectors | Polyamide (PA9T) Nylon 9T | Housing/Shell (4-40) | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Male Pins Plug | Grounding Indents | Brass |
MH Connectors | Polyester Glass Filled | Housing/Shell (4-40) | 37 | 5 A | 4 (DC C) | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Male Pins Plug | Ground Strap Grounding Indents | ||
MH Connectors | Polyamide (PA9T) Nylon 9T | Female Screwlock (4-40) Mating Side | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Male Pins Plug | Grounding Indents | Brass |
MH Connectors | Polyamide (PA9T) Nylon 9T | Female Screwlock (4-40) Mating Side | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Receptacle Female Sockets | ||
MH Connectors | Polyamide (PA9T) Nylon 9T | Female Screwlock (4-40) Mating Side | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Male Pins Plug | Board Lock Grounding Indents | Brass |
MH Connectors | Polyamide (PA9T) Nylon 9T | Female Screwlock (4-40) Mating Side | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Male Pins Plug | Ground Strap Grounding Indents | Brass |
MH Connectors | Polyamide (PA9T) Nylon 9T | Housing/Shell (Unthreaded) | 37 | 5 A | 4 (DC C) | Nickel Plated Steel | Flash | Panel Mount Right Angle Through Hole | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Black | Solder | Gold | 2 | 105 ░C | -55 °C | Signal | Receptacle Female Sockets | Ground Strap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
182-037 Series
37 Position D-Sub Receptacle, Female Sockets Connector
