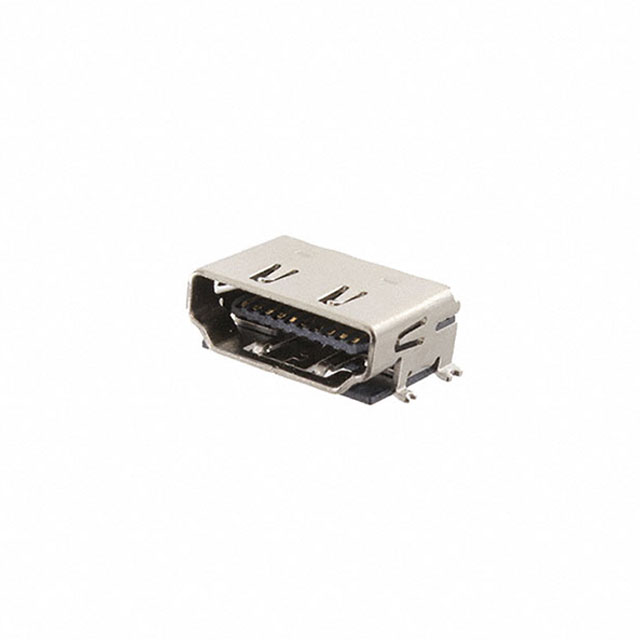

HDMI-S-RA-SMT-T/R

Active

Adam Tech

HDMI CONNECTOR R/A SMT

Search across all available documentation for this part.

Active

Adam Tech

HDMI CONNECTOR R/A SMT

Technical Specifications

Parameters and characteristics for this part

Specification	HDMI-S-RA-SMT-T/R

Connector Type	HDMI
Contact Finish	Gold
Current Rating (Amps)	0.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage - Rated	40 VAC

Part	Number of Contacts [custom]	Contact Finish	Number of Ports	Features	Connector Type	Mounting Feature	Shell/Shielding Material	Material Flammability Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Mounting Type	Insulation Color	Current Rating (Amps)	Shielding	Voltage - Rated
Adam Tech HDMI-S-RA-TSMT	19	Gold	1	Board Guide	HDMI	Horizontal	Copper Alloy	UL94 V-0	Solder	85 °C	-55 °C	Receptacle	Surface Mount Right Angle	Black	0.5 A	Shielded
Adam Tech HDMI-S-RA-SMT-T/R	19	Gold	1		HDMI	Horizontal	Copper Alloy	UL94 V-0	Solder	85 °C	-40 °C	Receptacle	Surface Mount Right Angle	Black	0.5 A	Shielded	40 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 1.85
