D01-9970242

Active

Harwin Inc.

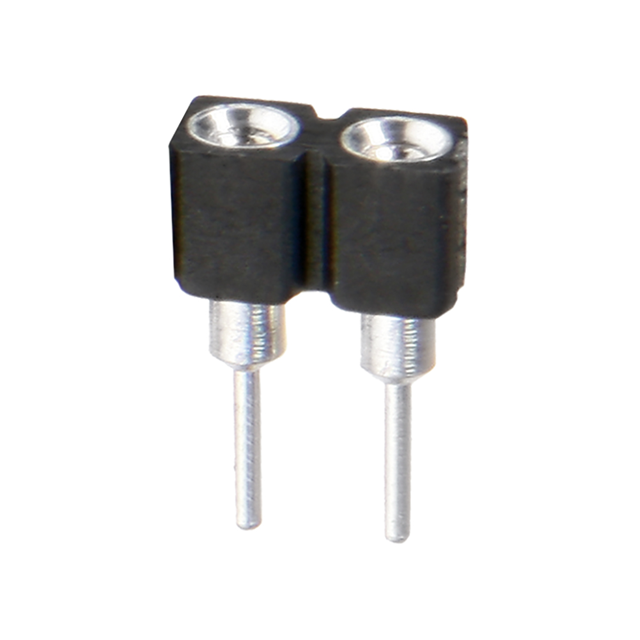

2 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Round Pin lC Sockets Spec Sheet

D01-9970242

Active

Harwin Inc.

2 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Round Pin lC Sockets Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9970242

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Threaded
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	SIP

D01-997 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Contact Material - Post [custom]	Housing Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Contact Finish Thickness - Mating	Contact Resistance	Pitch - Post	Pitch - Post	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Material Flammability Rating	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Mounting Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9970942	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in	9	Through Hole	SIP
Harwin Inc. D01-9971042	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in	10	Through Hole	SIP
Harwin Inc. D01-9970642	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in		Through Hole	SIP
Harwin Inc. D01-9972142	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in	21	Through Hole	SIP
Harwin Inc. D01-9972242	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in	22	Through Hole	SIP
Harwin Inc. D01-9973242	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in		Through Hole	SIP	1 x 32	32
Harwin Inc. D01-9971942	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in		Through Hole	SIP			1 x 19	19
Harwin Inc. D01-9970242	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in		Threaded	SIP			1 x 2		2
Harwin Inc. D01-9970842	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in	8	Through Hole	SIP
Harwin Inc. D01-9972042	196.9 µin	5 µm	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	1 A	Solder	Flash	10 mOhm	2.54 mm	0.1 in	Tin	-55 °C	125 °C	Gold	UL94 V-0	3.18 mm	0.125 in		Through Hole	SIP		20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.58
		10	$ 0.51
		100	$ 0.42
		500	$ 0.36
		1000	$ 0.30
		5000	$ 0.26
		10000	$ 0.25
Newark	Each	1000	$ 0.33

Description

General part information

D01-997 Series

2 (1 x 2) Pos SIP Socket Gold Threaded
