0039000219-11-B0-D

Active

Molex

11" PRE-CRIMP A2040 BLACK

Search across all available documentation for this part.

Active

Molex

11" PRE-CRIMP A2040 BLACK

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact Finish	Contact End	Wire Gauge	Length [x]	Length [x]	Number of Conductors	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Length	Length
Molex 0039000219-05-Y9	Gold	Pin to Cable (Round)	18 AWG	5 in	127 mm	1	0.76 Ám	30 Áin	Yellow	1
Molex 0039000219-03-Y9	Gold	Pin to Cable (Round)	18 AWG	3 in		1	0.76 Ám	30 Áin	Yellow	1	76.2 mm
Molex 0039000219-03-A0	Gold	Pin to Cable (Round)	20 AWG	3 in		1	0.76 Ám	30 Áin		1	76.2 mm
Molex 0039000219-04-G9	Gold	Pin to Cable (Round)	18 AWG	4 "	101.6 mm	1	0.76 Ám	30 Áin	Green	1
Molex 0039000219-11-B0-D	Gold		20 AWG	11 in	279.4 mm	1	0.76 Ám	30 Áin	Black	1
Molex 0039000219-04-S9	Gold	Pin to Cable (Round)	18 AWG	4 "	101.6 mm	1	0.76 Ám	30 Áin	Slate	1
Molex 0039000219-11-S4-D	Gold		24 AWG	11 in	279.4 mm	1	0.76 Ám	30 Áin	Slate	1
Molex 0039000219-05-R4	Gold	Pin to Cable (Round)	24 AWG	5 in	127 mm	1	0.76 Ám	30 Áin	Red	1
Molex 0039000219-08-Y9-D	Gold		18 AWG			1	0.76 Ám	30 Áin	Yellow	1	203.2 mm	8 in
Molex 0039000219-03-Y2	Gold	Pin to Cable (Round)	22 AWG	3 in		1	0.76 Ám	30 Áin	Yellow	1	76.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

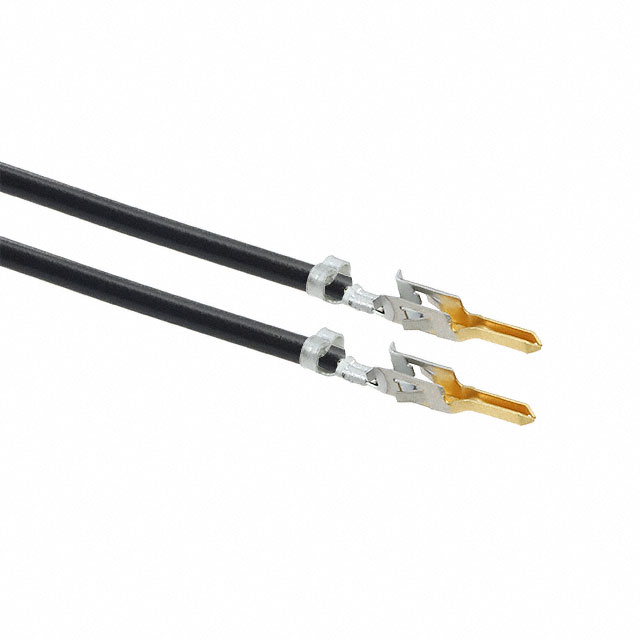

Black 20 AWG Jumper Lead Pin to Pin Gold 11.0" (279.4mm)
