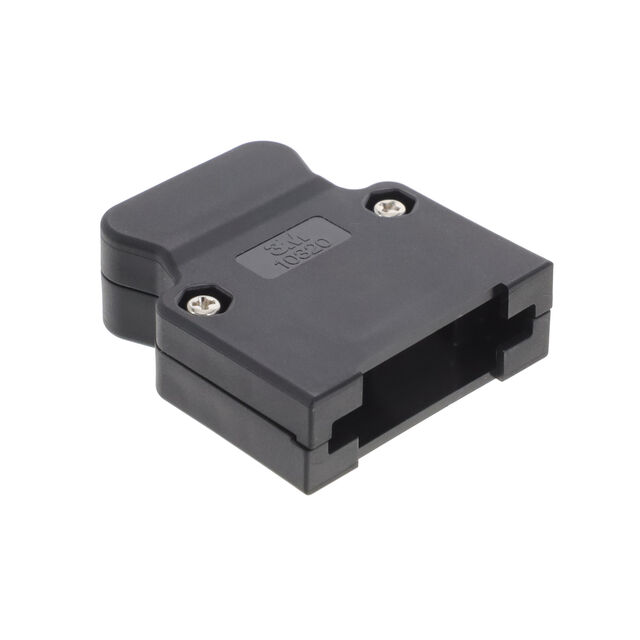

10320-E2W0-008

Active

3M (TC)

CONN BACKSHELL 20POS 180DEG BLK

Search across all available documentation for this part.

Active

3M (TC)

CONN BACKSHELL 20POS 180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Part	Material	Features	Cable Type	Number of Positions	Primary Material	Hardware	Cable Exit	Shielding	Color	Accessory Type	Plating	Material [custom]	Material [custom]
3M (TC) 10320-52A0-008	Polyester Glass Filled	Mating Screws M2.6	Round	20	Plastic	Assembly Hardware Strain Relief	180 °	Unshielded	Black	Two Piece Backshell
3M (TC) 10320-A200-00	Metal Zinc Alloy	Latch Lock	Round	20	Metal		180 °	Shielded	Silver	Two Piece Backshell	Nickel
3M (TC) 10320-C200-00	Zinc Alloy	Latch Lock	Round	20	Metal		180 °	Shielded	Silver	Two Piece Backshell	Nickel
3M (TC) 10320-3540-000		Latch Lock		20			60 °			Two Piece Backshell
3M (TC) 10320-3210-000		Latch Lock	Round	20	Metal		180 °	Shielded	Beige	Two Piece Backshell and Cover		Plastic Steel	Metal
3M (TC) 10320-52F0-008	Polybutylene Terephthalate (PBT) Glass Filled	Latch Lock	Round	20	Plastic	Assembly Hardware Strain Relief	180 °	Unshielded	Black	Two Piece Backshell
3M (TC) 10320-E2W0-008	Plastic		Round	20	Plastic	Assembly Hardware	180 °		Black	Two Piece Backshell
3M (TC) 10320-3210-00E
3M (TC) 10320-A200-60	Aluminum	Latch Lock	Round	20	Metal		180 °	Shielded	Silver	Two Piece Backshell	Nickel
3M (TC) 10320-A200-50	Aluminum	Latch Lock	Round	20	Metal		180 °	Shielded	Silver	Two Piece Backshell	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Two Piece Backshell Connector Black 180°

Technical documentation and resources
