10-2H25.2046

Active

EAO

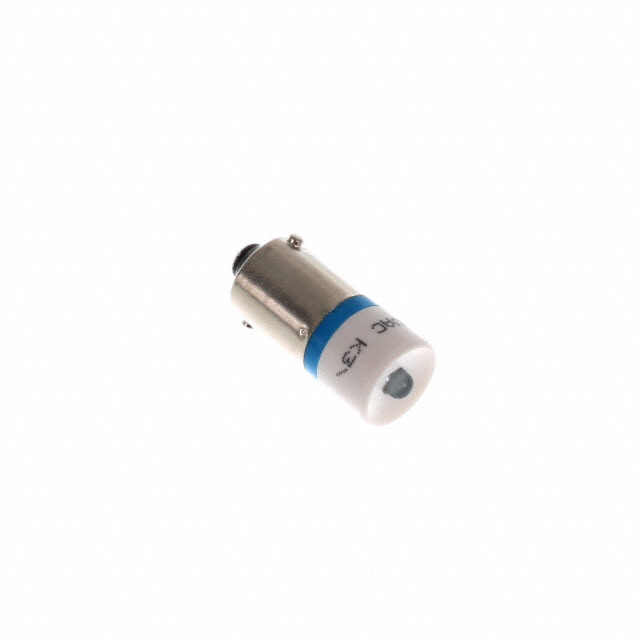

LAMP LED BA9S BLUE 230V

Search across all available documentation for this part.

Active

EAO

LAMP LED BA9S BLUE 230V

Technical Specifications

Parameters and characteristics for this part

Specification	10-2H25.2046

Applications	General Purpose Lighting
Base Type	Miniature Bayonet (BA9S)
Can Replace Lamps	Multiple Miniature Bayonet Lamps
Color	Blue
Configuration	Single
Millicandela Rating	200 mcd
Size / Dimension [diameter]	0.394 in
Size / Dimension [diameter]	10 mm
Size / Dimension [x]	1.142 inches
Size / Dimension [x]	29 mm
Voltage - Forward (Vf) (Typ)	230 VAC
Wavelength	470 nm

Part	Can Replace Lamps	Configuration	Applications	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Wavelength	Color	Base Type	Type	Voltage	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series
EAO 10-2H25.2045	Multiple Miniature Bayonet Lamps	Single	General Purpose Lighting	230 VAC	300 mcd	0.394 in	1.142 inches	10 mm	29 mm	525 nm	Green	Miniature Bayonet (BA9S)
EAO 10-2H25.2049											White		LED	230 V	10	EAO
EAO 10-2H25.2046	Multiple Miniature Bayonet Lamps	Single	General Purpose Lighting	230 VAC	200 mcd	0.394 in	1.142 inches	10 mm	29 mm	470 nm	Blue	Miniature Bayonet (BA9S)
EAO 10-2H25.2042											Red		LED	230 V	10	EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lamp Replacement Blue Miniature Bayonet (BA9S) 230VAC 0.394" Dia x 1.142" L (10.00mm x 29.00mm)
