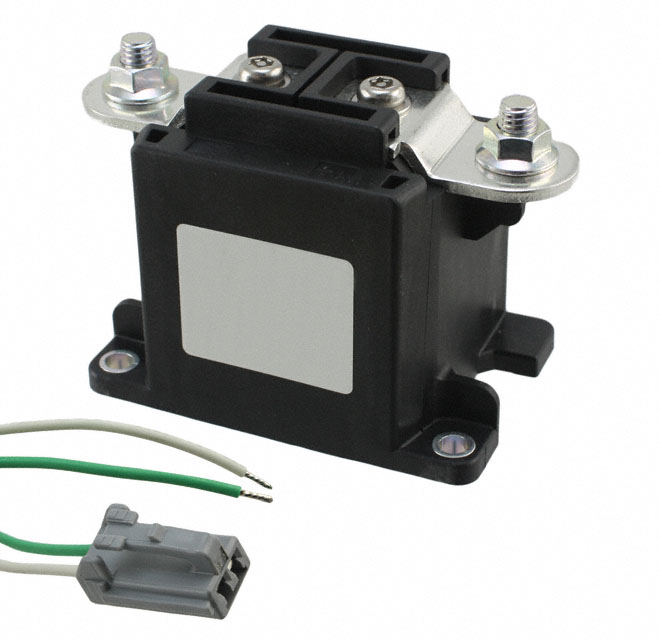

AEV19024W - aev19024w

AEV19024W

Active
Panasonic Electric Works

RELAY AUTOMOTIVE SPST 300A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date CodesGeneral Appl Guidelines
AEV19024W - aev19024w

AEV19024W

Active
Panasonic Electric Works

RELAY AUTOMOTIVE SPST 300A 24V

Deep-Dive with AI

DocumentsHow to Read Date CodesGeneral Appl Guidelines

Technical Specifications

Parameters and characteristics for this part

SpecificationAEV19024W
Coil Current1.9 A
Coil Power3.8 W
Coil TypeNon Latching
Coil Voltage24 VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)300 A
Mounting TypeChassis Mount
Must Operate Voltage18 VDC
Must Release Voltage4 VDC
Operate Time30 ms
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Release Time10 ms
Switching Voltage450 VDC
Termination StyleStud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 5$ 541.87

Description

General part information

AEV19024 Series

RELAY AUTOMOTIVE SPST 300A 24V
