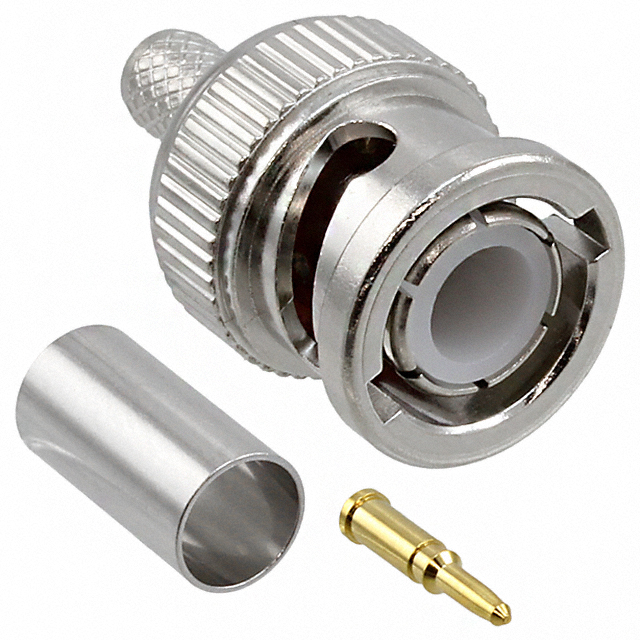

VB10-2050

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

VB10-2050

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VB10-2050

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

VB10 Series

Part	Center Contact Plating	Shield Termination	Mounting Type	Contact Termination	Fastening Type	Connector Style	Cable Group	Number of Ports	Connector Type	Dielectric Material	Frequency - Max [Max]	Includes	Housing Color	Mating Cycles	Voltage Rating	Impedance	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Body Material
Cinch Connectivity Solutions Trompeter VB10-2032	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	Belden 9275	1	Male Pin Plug
Cinch Connectivity Solutions Trompeter VB10-2071	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	188 316 KX22 KX3 RG-174 URM-95	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	50 Ohms	Brass	Nickel	-65 ░C	165 °C	0.2 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2031	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	RG-59	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	75 Ohms	Brass	Nickel	-65 ░C	165 °C	0.2 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2037M	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	PSF1/3M	1	Male Pin Plug	Polyoxymethylene (POM)	1 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	75 Ohms	Brass	Nickel	-55 °C	85 °C	0.1 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2050	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	223 400 RG-142	1	Male Pin Plug	Polyoxymethylene (POM)	4 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	50 Ohms	Brass	Nickel	-55 °C	85 °C	0.2 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2062	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	187 RG-179	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	75 Ohms	Brass	Nickel	-65 ░C	165 °C	0.1 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2025	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	CT125	1	Male Pin Plug	Polyoxymethylene (POM) Acetal	1 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	75 Ohms	Brass	Nickel	-55 °C	85 °C	0.1 dB	Brass
Cinch Connectivity Solutions Trompeter VB10-2057	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC		1	Male Pin Plug
Cinch Connectivity Solutions Trompeter VB10-2061	Gold	Crimp	Free Hanging (In-Line)	Crimp	Bayonet Lock	BNC	187 RG-179	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1 GHz	1 Connector 1 Contact 1 Ferrule	Silver	500	500 V	75 Ohms	Brass	Nickel	-65 ░C	165 °C	0.1 dB	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.31
		10	$ 2.81
		25	$ 2.64
		50	$ 2.51
		100	$ 2.39
		300	$ 2.21
		500	$ 2.13
		1000	$ 2.03
		2500	$ 1.91

Description

General part information

VB10 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
