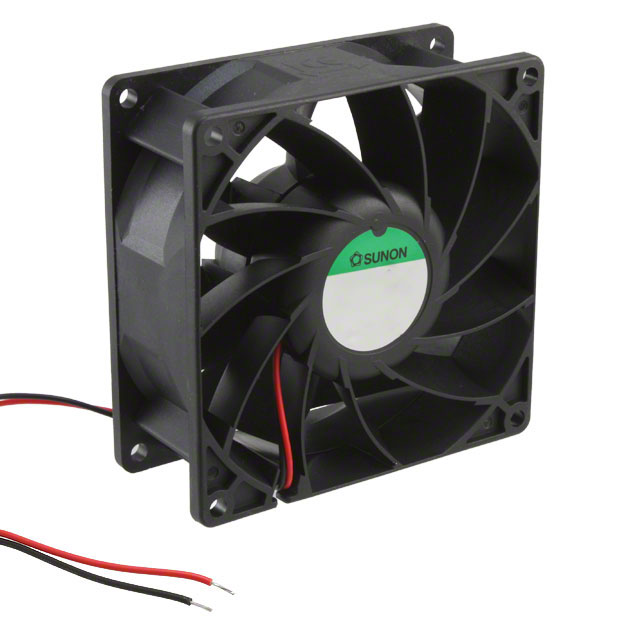

PMD1209PMB1-A.(2).GN
ActiveSunon Fans
FAN AXIAL 92X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
PMD1209PMB1-A.(2).GN
ActiveSunon Fans
FAN AXIAL 92X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMD1209PMB1-A.(2).GN |
|---|---|
| Air Flow | 120.2 CFM |
| Air Flow | 3.37 mł/min |
| Approval Agency | TUV, cUR, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.04 A |
| Fan Type | Tubeaxial |
| Noise | 57.6 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 12.5 W |
| RPM | 4900 RPM |
| Static Pressure | 0.71 in H2O |
| Static Pressure | 176.9 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 0.419 lb |
| Weight | 190.06 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.29 | |
| 10 | $ 23.13 | |||
| 25 | $ 21.19 | |||
| 50 | $ 19.80 | |||
| 100 | $ 19.77 | |||
Description
General part information
PMD1209 Series
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 120.2 CFM (3.37m³/min) 2 Wire Leads
