Q-3403W00032.5M

Active

Amphenol Custom Cable

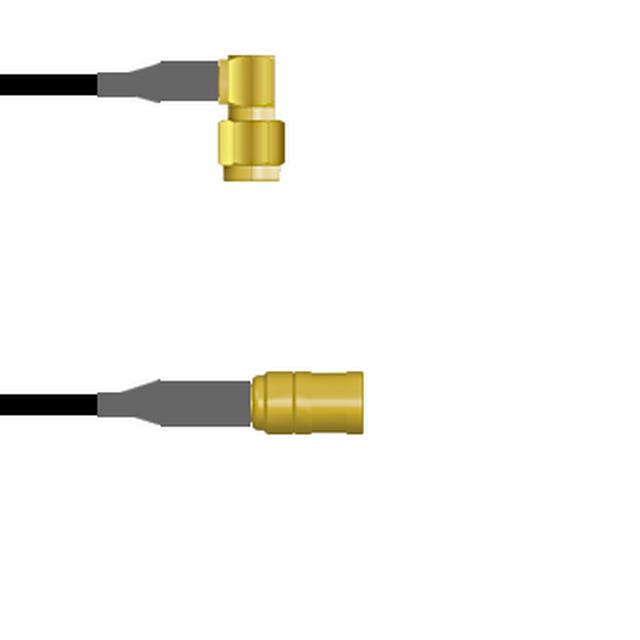

CBL ASSY SMA-SMB PLUG-PLUG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-3403W00032.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB PLUG-PLUG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3403W00032.5M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-3403W0 Series

Part	Style	Frequency - Max [Max]	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Features	Length	Length	Connector Impedance	2nd Connector	Color	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Cable Impedance	Cable Type	Length
Amphenol Custom Cable Q-3403W0005003I	SMA to SMB	3 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	3 in	76.2 mm	50 Ohms	SMB Plug	Copper	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-316
Amphenol Custom Cable Q-3403W00030.5M	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	19.69 "	50 cm	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174
Amphenol Custom Cable Q-3403W0003009I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	9 "	228.6 mm	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174
Amphenol Custom Cable Q-3403W0003084I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	84 in	2.1 m	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174	7 ft
Amphenol Custom Cable Q-3403W0003048I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	48 in	1200 mm	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174	4 ft
Amphenol Custom Cable Q-3403W0003108I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	108 in	2.7 m	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174	9 ft
Amphenol Custom Cable Q-3403W00032.5M	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	98.4 in	2.5 m	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174	8.2 '
Amphenol Custom Cable Q-3403W0003024I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	24 "	609.6 mm	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174
Amphenol Custom Cable Q-3403W0003006I	SMA to SMB	1 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	6 in	152.4 mm	50 Ohms	SMB Plug	Black	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-174
Amphenol Custom Cable Q-3403W0005003M	SMA to SMB	3 GHz	Female	Right Angle SMA Plug	Free Hanging (In-Line)	Shielded	118.1 in	3 m	50 Ohms	SMB Plug	Copper	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	RG-316	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.75
		25	$ 89.18
		50	$ 82.61
		100	$ 76.98
		250	$ 72.29

Description

General part information

Q-3403W0 Series

Cable Assembly Coaxial SMA to SMB RG-174 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
