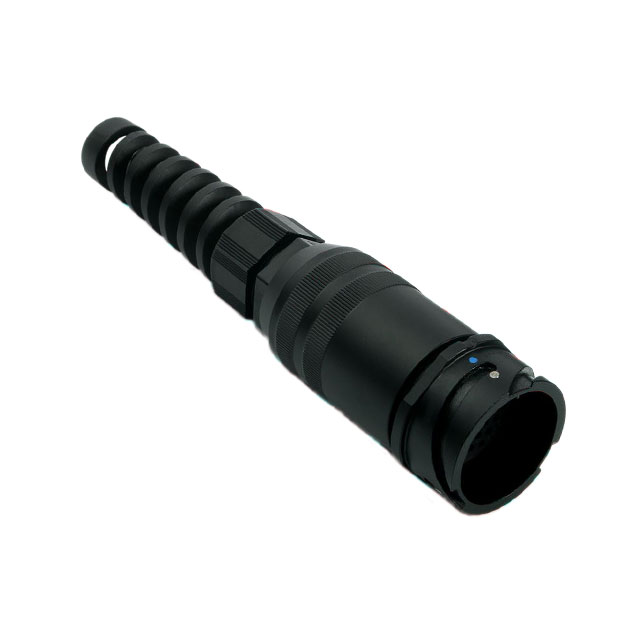

MP-4101-37P-C

Active

AMPHENOL AUDIO

CIRCULAR CONNECTOR, MP-41 SERIES, CABLE MOUNT RECEPTACLE, 37 CONTACTS, SOLDER PIN, BAYONET

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CIRCULAR CONNECTOR, MP-41 SERIES, CABLE MOUNT RECEPTACLE, 37 CONTACTS, SOLDER PIN, BAYONET

Technical Specifications

Parameters and characteristics for this part

Specification	MP-4101-37P-C

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	PG Adapter, Dust Cap, Backshell, Strain Relief
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Aluminum Alloy
Termination	Solder, Crimp

Part	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Type	Shell Material	Termination	Orientation	Contact Finish - Mating	Number of Positions	Ingress Protection	Connector Type	Contact Material	Insert Material	Color	Shell Finish	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Applications
AMPHENOL AUDIO MP-4101-37P-C	Backshell Dust Cap PG Adapter Strain Relief	Bayonet Lock	-55 °C	125 °C	Metal	Free Hanging (In-Line)	Aluminum Alloy	Crimp Solder	Keyed	Gold	37	IP67 - Dust Tight Waterproof	Male Pins Receptacle
AMPHENOL AUDIO MP-4101-19P-C	Backshell Dust Cap PG Adapter Strain Relief	Bayonet Lock	-55 °C	125 °C	Metal	Free Hanging (In-Line)	Aluminum Alloy	Crimp Solder	Keyed	Gold	19	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Brass	Neoprene	Black	Black	Unshielded	5 mm	12 mm	0.197 in	0.472 in	13 A	Audio Lighting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.99
Newark	Each	1	$ 204.19

General part information

37 Position Circular Connector Receptacle, Male Pins Crimp, Solder
