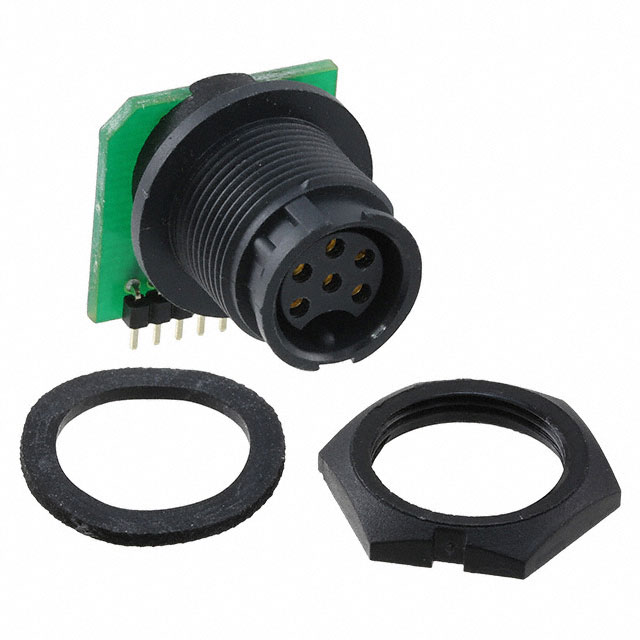

7261-6SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7261-6SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Number of Positions	Primary Material	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Applications	Current Rating (Amps)	Fastening Type	Shielding	Color	Mounting Feature	Ingress Protection	Termination	Orientation	Material Flammability Rating	Contact Finish - Mating	Insert Material	Backshell Material, Plating
Conxall/Switchcraft 7261-6SG-300	6	Plastic	Panel Mount Right Angle Through Hole	Copper Alloy	85 °C	-40 °C	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Bayonet Lock	Unshielded	Black	Bulkhead - Front Side Nut	Weathertight	Circuit Board Solder	Keyed	UL94 V-0	Gold	Thermoplastic	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
