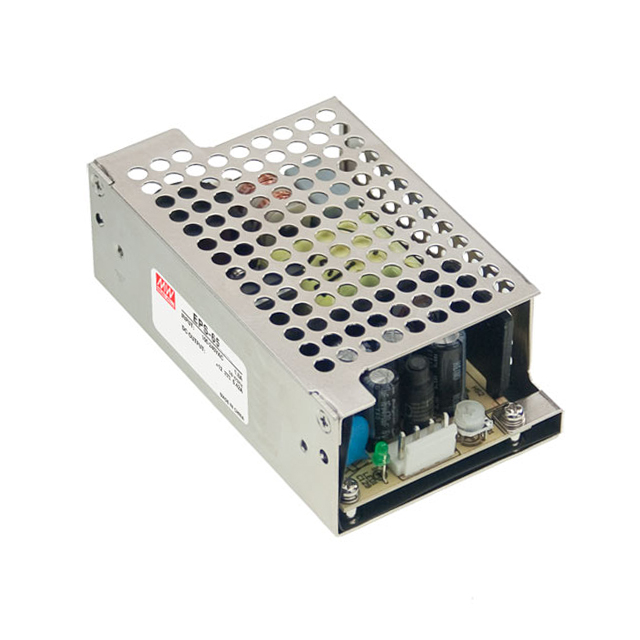

EPS-65-3.3-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 3.3V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPS-65-3.3-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 3.3V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPS-65-3.3-C

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	11 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	36 W
Size / Dimension [x]	4.07 in
Size / Dimension [x]	103.4 mm
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.44 "
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

EPS-65 Series

Part	Voltage - Isolation	Approval Agency	Efficiency	Features	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Output 1	Type	Applications	Power (Watts)
MEAN WELL USA Inc. EPS-65-12-C	3000 V	CB CE cURus TUV	86 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	1	70 °C	-30 °C	5.42 A	12 V	Enclosed	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-48	3000 V	CB CE cURus TUV	90 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	1.14 in 29 mm		50.8 mm	101.6 mm			1	70 °C	-30 °C	1.36 A	48 V	Open Frame	ITE (Commercial)
MEAN WELL USA Inc. EPS-65S-12	3000 V	CB CE cURus TUV	88 %	Adjustable Output Universal Input	80 VAC	264 VAC	Chassis Mount	24 mm	3 "	50.8 mm	76.2 mm	2 in	0.94 in	1	70 °C	-30 °C	5.42 A	12 V	Open Frame	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-15	3000 V	CB CE cURus TUV	87 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	1.14 in 29 mm		50.8 mm	101.6 mm			1	70 °C	-30 °C	4.34 A	15 V	Open Frame	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-24	3000 V	CB CE cURus TUV	88 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	1.14 in 29 mm		50.8 mm	101.6 mm			1	70 °C	-30 °C	2.71 A	24 V	Open Frame	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-7.5-C	3000 V	CB CE cURus TUV	84 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	1	70 °C	-30 °C	8 A	7.5 V	Enclosed	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-48-C	3000 V	CB CE cURus TUV	90 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	1	70 °C	-30 °C	1.36 A	48 V	Enclosed	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-3.3-C	3000 V	CB CE cURus TUV	80 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	1	70 °C	-30 °C	11 A	3.3 V	Enclosed	ITE (Commercial)	36 W
MEAN WELL USA Inc. EPS-65-24-C	3000 V	CB CE cURus TUV	88 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	1	70 °C	-30 °C	2.71 A	24 V	Enclosed	ITE (Commercial)
MEAN WELL USA Inc. EPS-65-12	3000 V	CB CE cURus TUV	86 %	Adjustable Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	Chassis Mount	1.14 in 29 mm		50.8 mm	101.6 mm			1	70 °C	-30 °C	5.42 A	12 V	Open Frame	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.89
		5	$ 18.74
		10	$ 18.26
		25	$ 17.65

Description

General part information

EPS-65 Series

Enclosed AC DC Converters 1 Output 3.3V 90 ~ 264 VAC, 127 ~ 370 VDC Input
