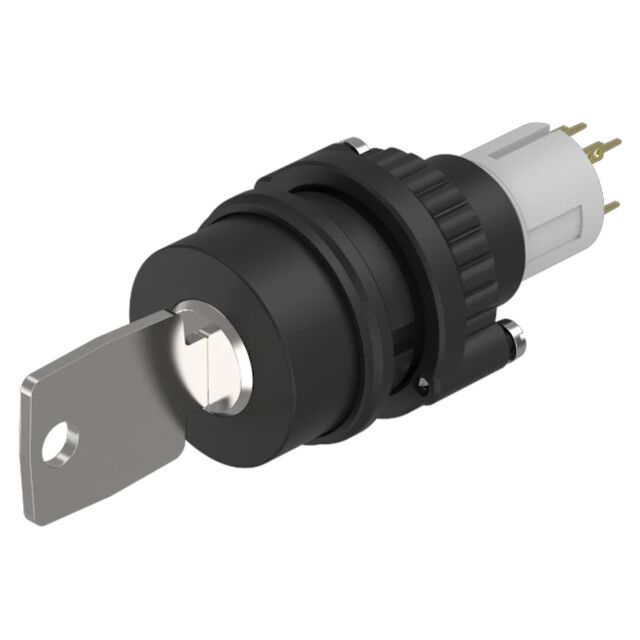

14-438.036K

Active

EAO

SWITCH KEYLK 2POS DPST 100MA 42V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLK 2POS DPST 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	14-438.036K

Actuator Type	Flat Key
Angle of Throw	42 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Depth Behind Flange	41.5 mm
Features	IP65
Key Removable Positions	1 only
Mechanical Life	2000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom
Termination Style	PC Pin, Solder Lug
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Actuator Type	Depth Behind Flange	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Contact Timing	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Voltage Rating - AC	Angle of Throw	Number of Positions	Key Removable Positions	Mechanical Life
EAO 14-438.036K	Flat Key	41.5 mm	DPST-NO/NC	22.3 mm	100 mA	Off-Mom On-Mom	42 V	Not Specified	55 °C	-25 °C	PC Pin Solder Lug	IP65	42 V	42 °	2	1 only	2000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 VAC 42 VDC Panel Mount
