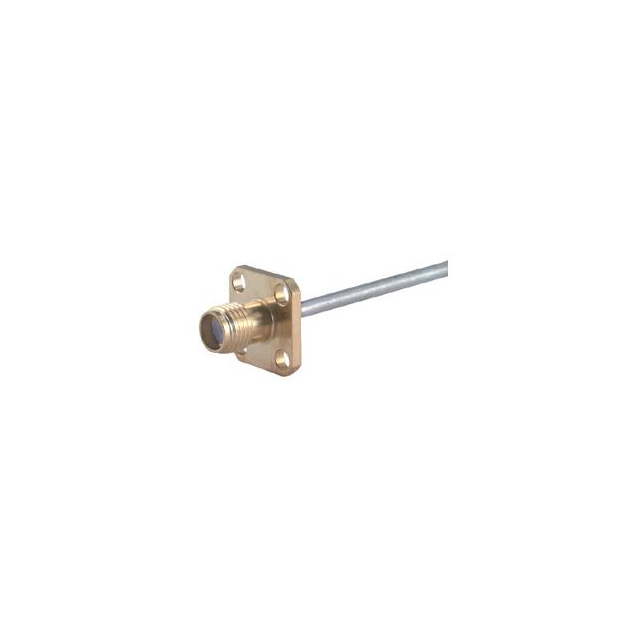

25_SMA-50-2-15/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

25_SMA-50-2-15/111_NE

Active

Huber+Suhner, Inc.

25_SMA-50-2-15/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25_SMA-50-2-15/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

25_SMA-50 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Connector Style	Housing Color	Frequency - Max [Max]	Mating Cycles	Center Contact Plating	Cable Group	Mounting Feature	Impedance	Number of Ports	Connector Type	Contact Termination	Center Contact Material	Dielectric Material	Body Material	Shield Termination	Cable Group
Huber+Suhner, Inc. 25_SMA-50-2-6/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	RD-316	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Crimp
Huber+Suhner, Inc. 25_SMA-50-1-4/111_NE	-65 ░C	125 °C	Gold	SMA	Gold	18 GHz	500	Gold	Semi Rigid	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	0.047 in
Huber+Suhner, Inc. 25_SMA-50-2-5/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	188 316 RG-174	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Crimp
Huber+Suhner, Inc. 25_SMA-50-2-15/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	RG-405	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder
Huber+Suhner, Inc. 25_SMA-50-3-25/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	RG-141	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder
Huber+Suhner, Inc. 25_SMA-50-2-5/111_NH	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	188 316 RG-174	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Crimp
Huber+Suhner, Inc. 25_SMA-50-1-4/111_NH	-65 ░C	125 °C	Gold	SMA	Gold	18 GHz	500	Gold	Semi Rigid	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	0.047 in
Huber+Suhner, Inc. 25_SMA-50-1-2/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	Semi Rigid	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	0.047 in
Huber+Suhner, Inc. 25_SMA-50-3-15/111_NH	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	RG-141	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder
Huber+Suhner, Inc. 25_SMA-50-3-15/111_NE	-65 ░C	165 °C	Gold	SMA	Gold	18 GHz	500	Gold	RG-141	Flange	50 Ohms	1	Female Socket Jack	Solder	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.81
		10	$ 23.01
		25	$ 20.85
		50	$ 19.39
		100	$ 18.06
		250	$ 16.50
		500	$ 15.45

Description

General part information

25_SMA-50 Series

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources
