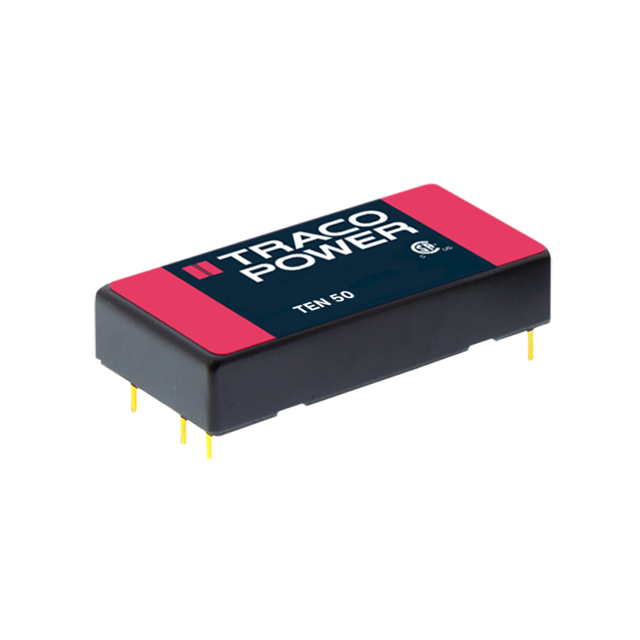

TEN 50-2410

Active

Traco Power

DC DC CONVERTER 3.3V 33W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER 3.3V 33W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Applications	Features	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Isolation	Efficiency	Voltage - Input (Min) [Min]
Traco Power TEN 50-2412WI	50 W	ITE (Commercial)	OCP OTP Remote On/Off SCP	12 V	1	-40 °C	80 ¯C	Through Hole	Isolated Module	6-DIP Module	36 V	50.8 mm	0.43 "	25.4 mm	11 mm	25.4 mm	2 in	Module	4.17 A	1.5 kV	92 %	9 V
Traco Power TEN 50-2410	33 W	ITE (Commercial)	OCP Remote On/Off SCP	3.3 V	1	-40 °C	85 °C	Through Hole	Isolated Module	6-DIP Module	36 V	50.8 mm	0.43 "	25.4 mm	11 mm	25.4 mm	2 in	Module	10 A	1.5 kV	89 %	18 V
Traco Power TEN 50-1211	50 W	ITE (Commercial)	OCP Remote On/Off SCP	5 V	1	-40 °C	85 °C	Through Hole	Isolated Module	6-DIP Module	18 V	50.8 mm	0.43 "	25.4 mm	11 mm	25.4 mm	2 in	Module	10 A	1.5 kV	90 %	9 V
Traco Power TEN 50-4811WI	50 W	ITE (Commercial)	OCP OTP Remote On/Off SCP	5 V	1	-40 °C	80 ¯C	Through Hole	Isolated Module	6-DIP Module	75 V	50.8 mm	0.43 "	25.4 mm	11 mm	25.4 mm	2 in	Module	10 A	1.5 kV	91 %	18 V
Traco Power TEN 50-4810WI	33 W	ITE (Commercial)	OCP OTP Remote On/Off SCP	3.3 V	1	-40 °C	80 ¯C	Through Hole	Isolated Module	6-DIP Module	75 V	50.8 mm	0.43 "	25.4 mm	11 mm	25.4 mm	2 in	Module	10 A	1.5 kV	90 %	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 10A 18V - 36V Input
