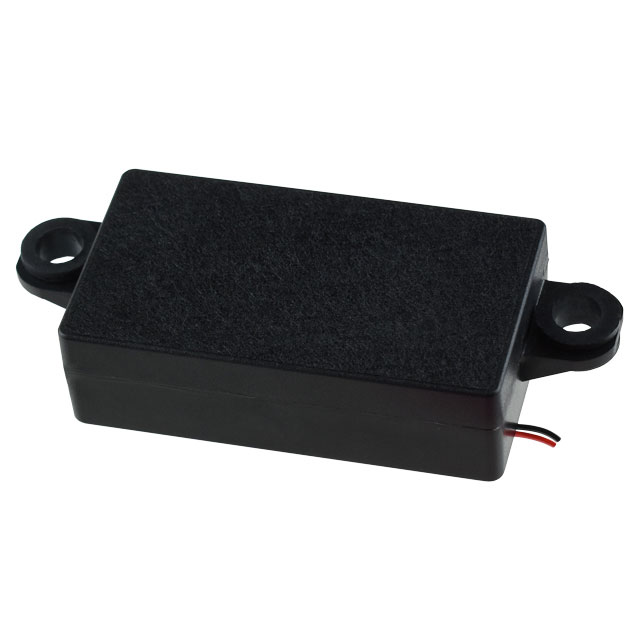

CES-603318-24PM

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 104DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 104DB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-603318-24PM

Distortion Rating	5 %
Efficiency - dBA	104 dBA
Efficiency - Testing	2W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	800 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	200 Hz
Height - Seated (Max) [Max] [z]	0.701 in
Height - Seated (Max) [Max] [z]	17.8 mm
Impedance	4 Ohms
Ingress Protection	IP66
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	4 W
Power - Rated	2 W
Shape	Rectangular
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.835 "
Size / Dimension [y]	33 mm
Size / Dimension [y]	1.299 in
Technology	Magnetic
Termination	Wire Leads
Type	Enclosure Included, General Purpose

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ingress Protection	Technology	Efficiency - dBA	Port Location	Material - Magnet	Material - Cone	Frequency Range [Max]	Frequency Range [Min]	Frequency - Self Resonant	Distortion Rating	Shape	Power - Rated	Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency - Type	Termination	Impedance	Efficiency - Testing	Power - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
CUI Devices CES-603318-24PM	0.701 in	17.8 mm	IP66	Magnetic	104 dBA	Top	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	20 kHz	200 Hz	800 Hz	5 %	Rectangular	2 W	Enclosure Included General Purpose	-20 C	60 °C	Sound Pressure Level (SPL)	Wire Leads	4 Ohms	2W/100mm	4 W	72 mm	33 mm	2.835 "	1.299 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Ohms General Purpose, Enclosure Included Speaker 2 W 200 Hz ~ 20 kHz Top Rectangular
