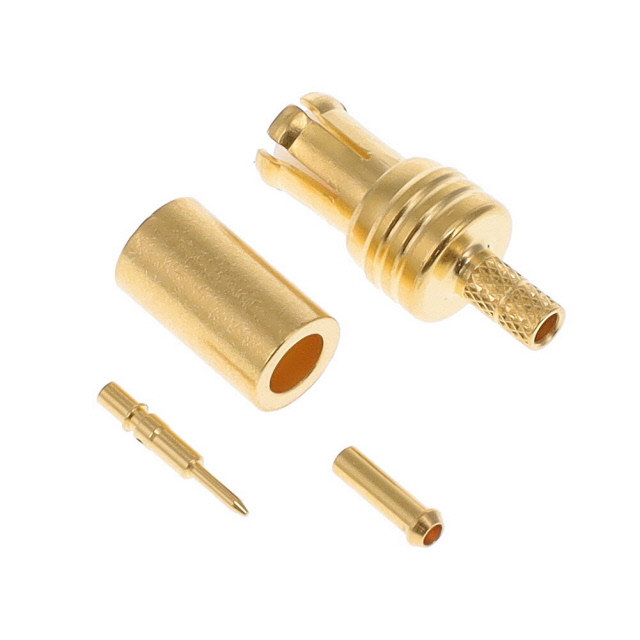

11_MCX-50-1-13/111_NH

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_MCX-50-1-13/111_NH

Active

Huber+Suhner, Inc.

11_MCX-50-1-13/111_NH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_MCX-50-1-13/111_NH

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

11_MCX-50 Series

Part	Body Finish	Shield Termination	Connector Type	Impedance	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Number of Ports	Frequency - Max [Max]	Voltage Rating	Mating Cycles	Center Contact Material	Cable Group	Center Contact Plating	Housing Color	Connector Style	Mounting Type	Contact Termination	Dielectric Material	Cable Group
Huber+Suhner, Inc. 11_MCX-50-2-16/133_NH	White Bronze	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Beryllium Copper	1	6000 MHz	170 V	500	Brass	188 316 RG-174	Gold	Silver	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MCX-50-2-16/111_NH	Gold	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Brass	1	6000 MHz	170 V	500	Brass	188 316 RG-174	Gold	Gold	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MCX-50-2-19/111_NE	Gold	Solder	Male Pin Plug	50 Ohms	Snap-On	155 °C	-65 ░C	Beryllium Copper	1	6000 MHz	170 V	500	Brass	RG-405	Gold	Gold	MCX	Free Hanging (In-Line)	Solder	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MCX-50-1-13/133_NH	White Bronze	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Beryllium Copper	1	6000 MHz	170 V	500	Brass	RG-178	Gold	Silver	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	196
Huber+Suhner, Inc. 11_MCX-50-1-13/111_NH	Gold	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Brass	1	6000 MHz	170 V	500	Brass	RG-178	Gold	Gold	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	196
Huber+Suhner, Inc. 11_MCX-50-2-15/111_NH	Gold	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Brass	1	6000 MHz	170 V	500	Brass	RG-316	Gold	Gold	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MBX-50-2-1/113_NH	Gold	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Brass Bronze	1	6000 MHz	330 VDC		Beryllium Copper	RD-316	Gold	Gold	MBX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_MCX-50-1-14/111_NE	Gold	Solder	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Beryllium Copper	1	6000 MHz	170 V	500	Brass	Semi Rigid	Gold	Gold	MCX	Free Hanging (In-Line)	Solder	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	0.047 in
Huber+Suhner, Inc. 11_MCX-50-2-15/133_NH	White Bronze	Crimp	Male Pin Plug	50 Ohms	Snap-On	155 °C	-55 °C	Beryllium Copper	1	6000 MHz	170 V	500	Brass	RD-316	Gold	Silver	MCX	Free Hanging (In-Line)	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.26
		10	$ 5.69
		25	$ 5.39
		50	$ 5.26
		100	$ 5.01
		250	$ 4.38
		500	$ 4.26
		1000	$ 3.63
		2500	$ 3.38

Description

General part information

11_MCX-50 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
