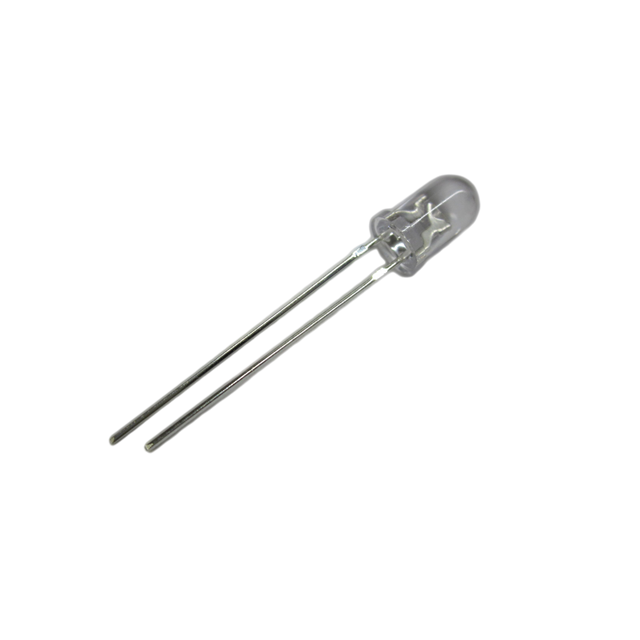

QBL8O15C
ActiveQT Brightek (QTB)
LED ORANGE CLEAR T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL8O15C
ActiveQT Brightek (QTB)
LED ORANGE CLEAR T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL8O15C |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.9 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 6500 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 5 mm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 605 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 25000 | $ 0.15 | |||
Description
General part information
QBL8O15 Series
Orange 605nm LED Indication - Discrete 2V Radial
