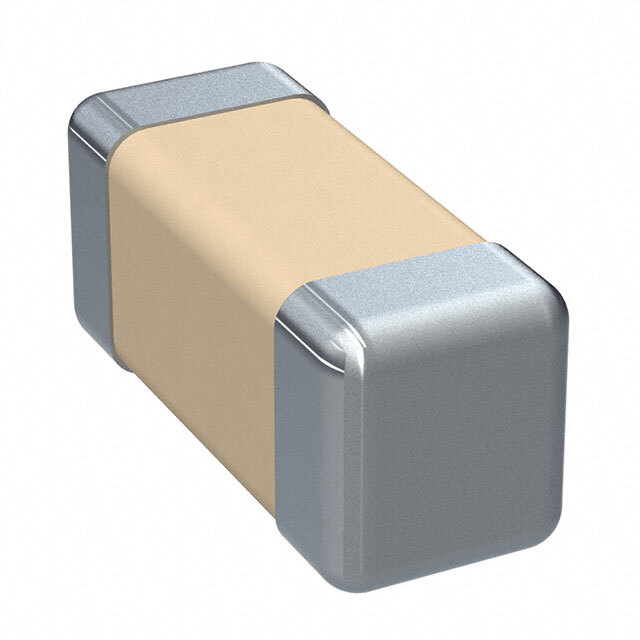

C0201C270K3GACTU

Active

KEMET

27.0PF 25.0V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C0201C270K3GACTU

C0201C270K3GACTU

Active

KEMET

27.0PF 25.0V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet C0201C270K3GACTU

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C0201C270K3GACTU

Applications	General Purpose
Capacitance	27 pF
Features	Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Size / Dimension [x]	0.6 mm
Size / Dimension [x]	0.024 "
Size / Dimension [y]	0.3 mm
Size / Dimension [y]	0.012 "
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.013 in
Thickness (Max) [Max]	0.33 mm
Tolerance	10 %
Voltage - Rated	25 VDC

C0201C Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Features	Mounting Type	Package / Case	Package / Case	Applications	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Voltage - Rated [custom]
KEMET C0201C390M3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	20 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	39 pF
KEMET C0201C680J4GACTU	-55 °C	125 °C		0.013 in	0.33 mm	5 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	68 pF	16 V
KEMET C0201C180M3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	20 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	18 pF
KEMET C0201C470M3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	20 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	47 pF
KEMET C0201C150J3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	5 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	15 pF
KEMET C0201C150K3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	10 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	15 pF
KEMET C0201C560M3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	20 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	56 pF
KEMET C0201C104K7PACTU	-55 °C	85 °C	4 V	0.013 in	0.33 mm	10 %		MLCC Surface Mount	0603 Metric	0201	Bypass Decoupling	X5R	0.3 mm	0.6 mm	0.024 "	0.012 "	100000 pF
KEMET C0201C220M3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	20 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	22 pF
KEMET C0201C270K3GACTU	-55 °C	125 °C	25 VDC	0.013 in	0.33 mm	10 %	Low ESL	MLCC Surface Mount	0603 Metric	0201	General Purpose	C0G NP0	0.3 mm	0.6 mm	0.024 "	0.012 "	27 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.05
		50	$ 0.03
		100	$ 0.02
	Digi-Reel®	1	$ 0.10
		10	$ 0.05
		50	$ 0.03
		100	$ 0.02
	Tape & Reel (TR)	30000	$ 0.01
Newark	Each (Supplied on Full Reel)	10000	$ 0.01

Description

General part information

C0201C Series

27 pF ±10% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric)

Documents

Technical documentation and resources
